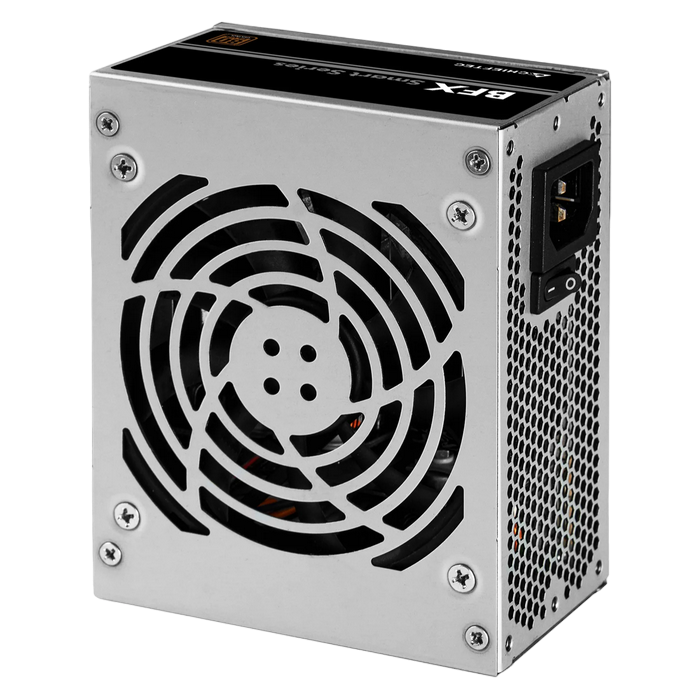

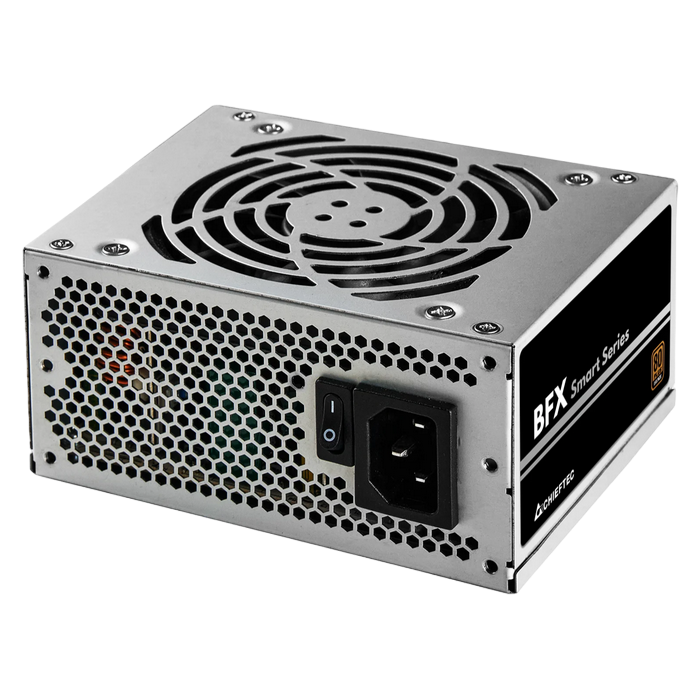

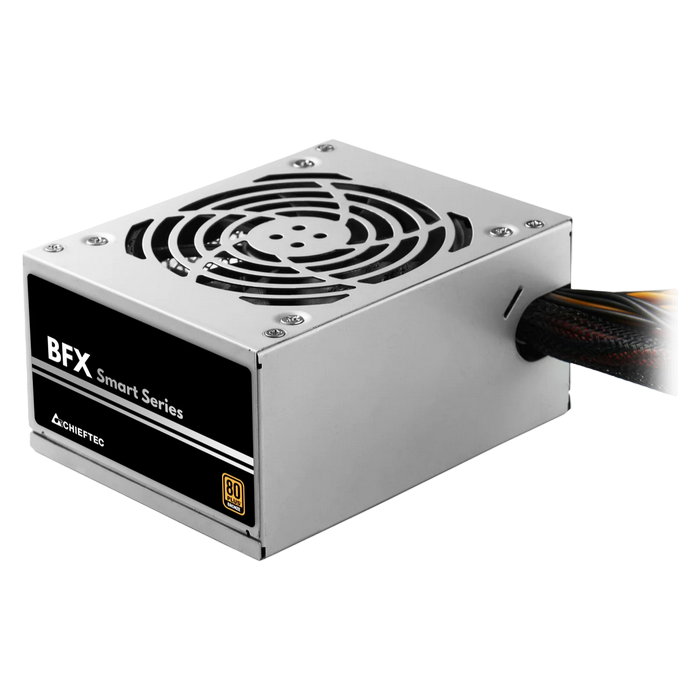

. TECHNICAL DATA Model Smart 350W Article no. BFX-350BS EAN code 0753263077486 Weight (without/with package) 1kg / 1.3kg AC Input 100 - 240V / 5.0A Frequency 47 - 63Hz +5V 18.0A +3,3V 18.0A +5V & +3,3V combined 110W +12V1 29.16A +12V2 - +12V1, +12V2 combined 349.92W P.F. >0,9 -12V 0,3A / 3,6W +5VSB 2,5A / 12.5W Maximum Power 350W Connectors 20+4 PIN ATX 1 8 PIN EPS(4+4) 1 8 PIN PCIe (6+2) 1 SATA 3 MOLEX/FLOPPY 2/1 Cable length (mm) 20+4 PIN ATX 350 8 PIN EPS(4+4) 350 8 PIN PCIe (6+2) 350 SATA 3 x 250 MOLEX/FLOPPY 2 x 150 / 150 Features ATX12V Version ATX 12V 2.3 Efficiency 80 PLUS® Bronze Dimension (DxWxH) 100mm x 125mm x 64mm PFC Active PFC (0,9) Fan 90mm silent fan Security AFC (Automatic Fan speed Control) OCP (Overcurrent protection) OPP (Overload protection) OTP (Over-temperature protection) OVP (Overvoltage protection) SCP (Short-circuit protection) SIP (Surge & Inrush Protection) UVP (Under Voltage protection)
Specificație produs
| Clasa de eficiență energetică |
80+ Bronze |
| Versiunea ATX |
ATX 12V 2.3 |
| Corecția factorului de putere |
Active PFC |
| Tip |
PC Power Supply |
| Culoare |
Grey | Серый |
| 24-pin (20+4) ATX power |
1 |
| Puterea SATA |
3 |
| 8-pin (4+4) ATX/ESP 12V |
1 |
| Dischetă |
1 |
| MOLEX |
2 |
