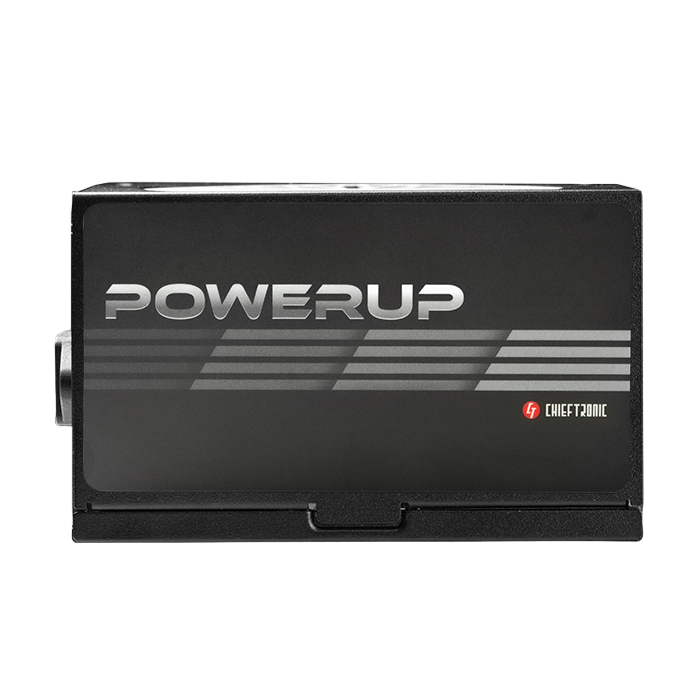

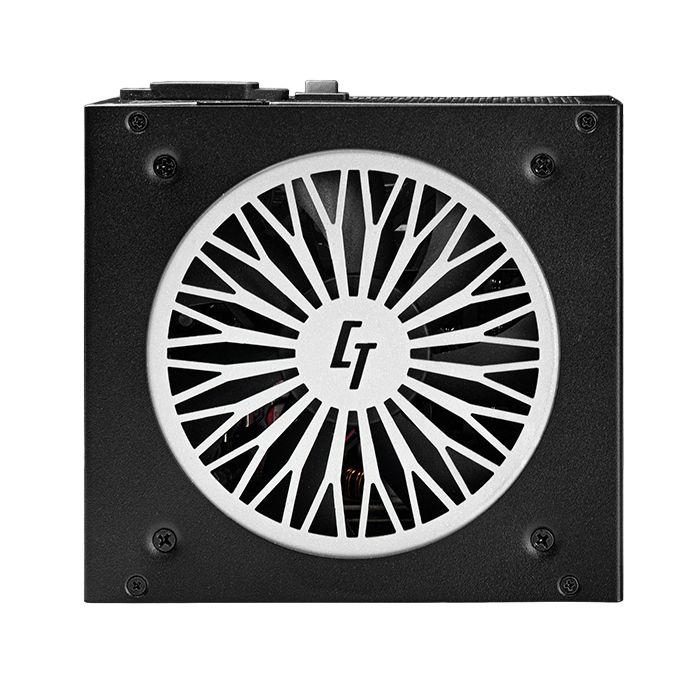

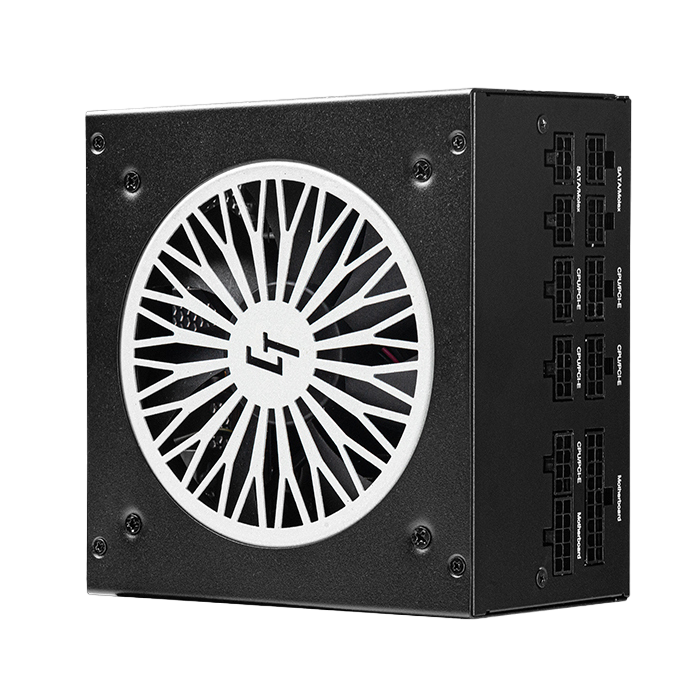

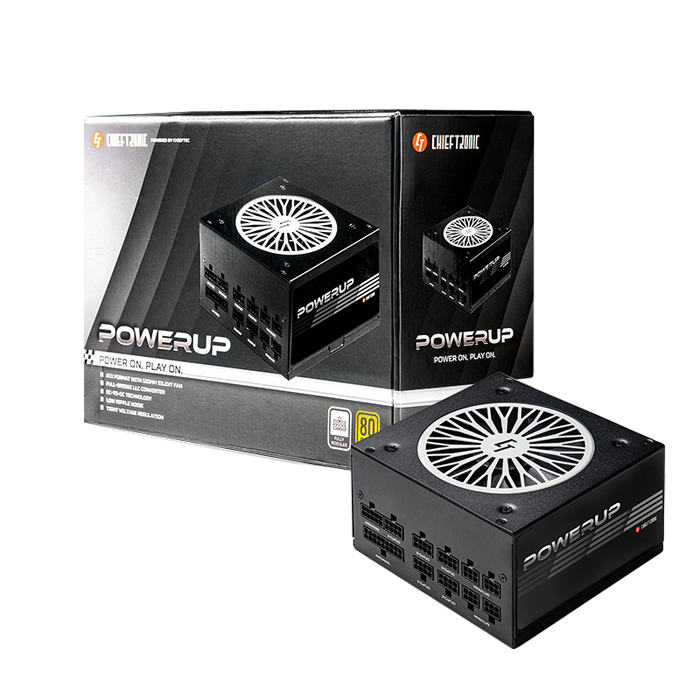

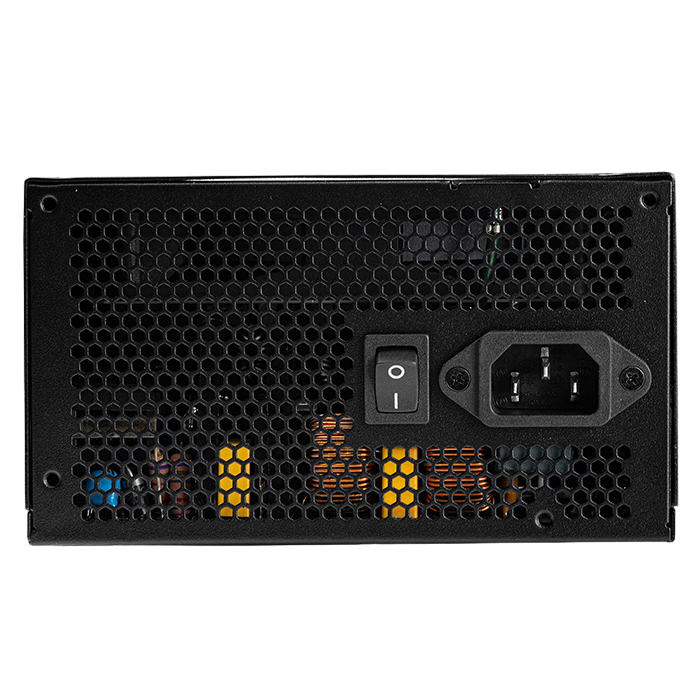

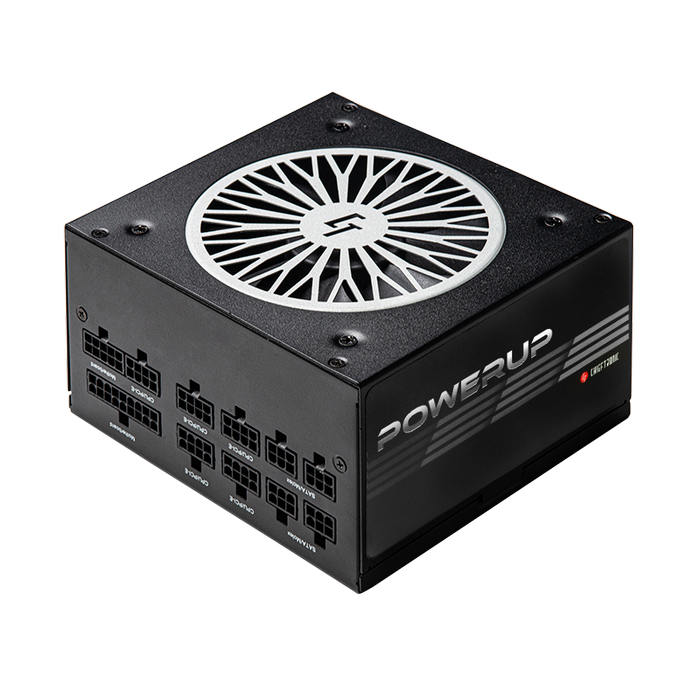

Power Supply ATX 750W Chieftec PowerUP GPX-750FC, 80+ Gold, 120mm, Active PFC, Full Bridge LLC + DC/DC, Full Modular, Black

. 80 PLUS® Gold certified efficiency Fully modular cable management Full-bridge LLC converter with DC-to-DC technology Low ripple and tight voltage regulation Model PowerUP 750W Article no. GPX-750FC EAN code 753263077196 Weight (without/with package) 2.3 kg / 2.85 kg AC Input 100 - 240V / 10.0A Frequency 47 - 63Hz +5V 20A +3,3V 20A +5V & +3,3V combined 110W +12V1 62A +12V2 - +12V1, +12V2 combined 744W P.F. -12V 0,3A / 3,6W +5VSB 2,5A / 12,5W Maximum Power 750W 20+4 PIN ATX 1 8 PIN EPS(4+4) 2 8 PIN PCIe (6+2) 4 SATA 9 MOLEX/FLOPPY 3/1 ATX12V Version v2.53 Efficiency 80+Gold Dimension (DxWxH) 140 mm x 150 mm x 86 mm PFC Active PFC Fan 120mm silent fan Security AFC (Automatic Fan speed Control) OCP (Over Current Protection) OPP (Over Power Protection) OTP (Over Temperature Protection) OVP (Over Voltage Protection) SCP (Short Circuit Protection) SIP (Surge & Inrush Protection) UVP (Under Voltage Protection)
Specificație produs
Dischetă 1
MOLEX 3
Puterea SATA 9
8-pin (6+2) PCI-E 4
8-pin (4+4) ATX/ESP 12V 2

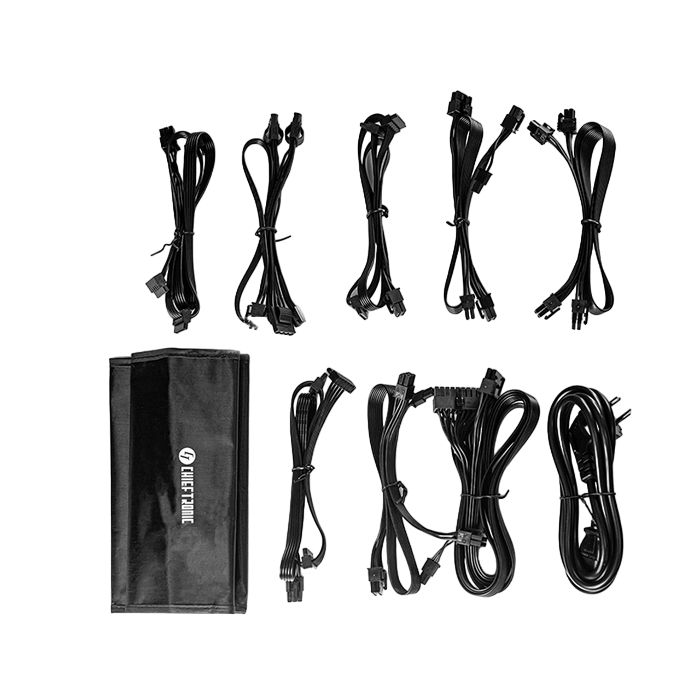

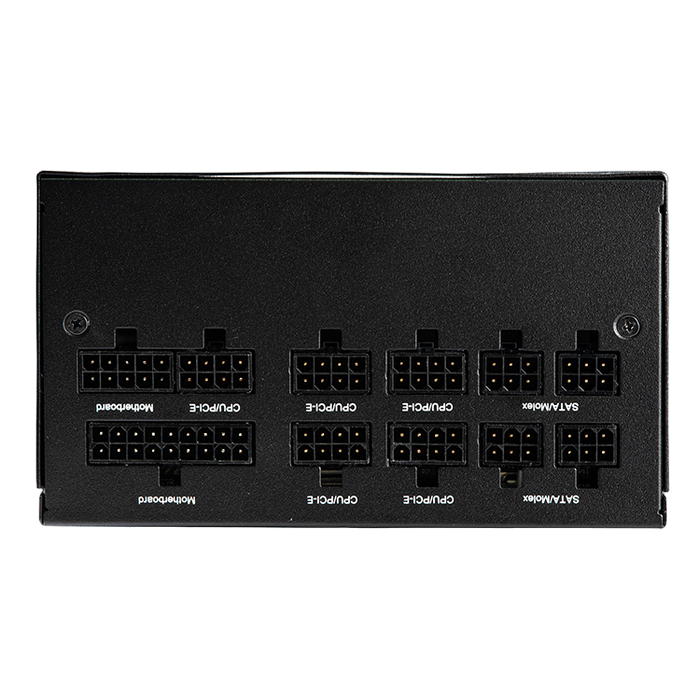

Cablaj modular Fully Modular
Culoare Black | Чёрный
Dimensiune ventilatoare 120 mm
Tensiune de intrare 100~240 VAC
Clasa de eficiență energetică 80+ Gold
Versiunea ATX ATX 12V 2.53
Corecția factorului de putere Active PFC
Format ATX
Tip Sursă Alimentare Internal
Aplicare (Utilizare) PC
Tip PC Power Supply
24-pin (20+4) ATX power 1
