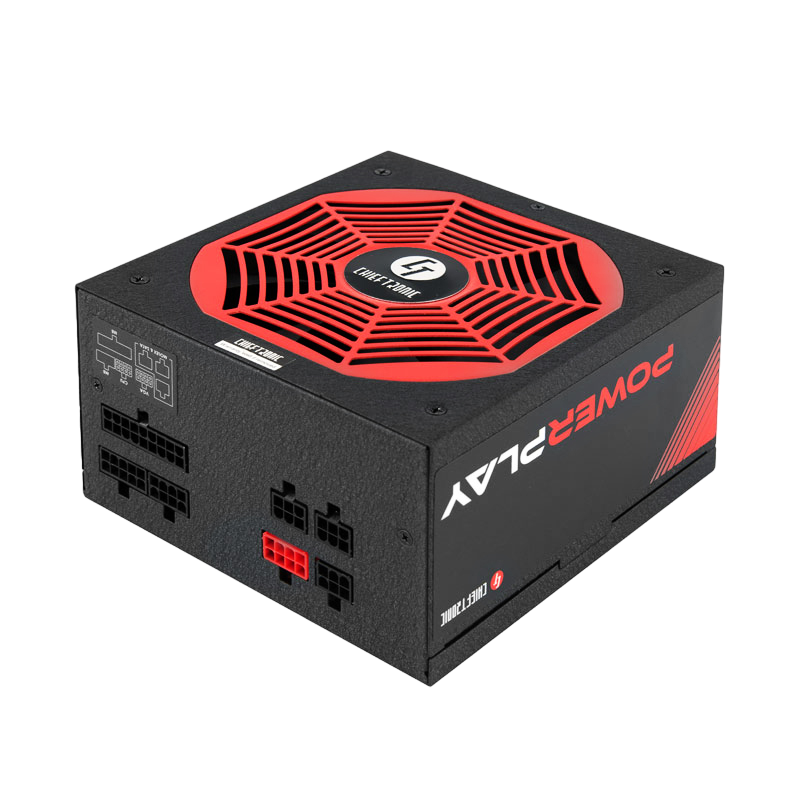

Power Supply ATX 750W Chieftec PowerPlay GPU-750FC, 80+ Gold,140mm, Active PFC, Half-Bridge LLC+DC/DC, Full Modular, Black

. Model PowerPlay 750W Article no. GPU-750FC EAN code 7,53263E+11 Weight (without/with package) 2.44 kg / 2.85 kg AC Input 100 - 240V / 10.0A Frequency 47 - 63Hz +5V 22A +3,3V 22A +12V 1 62.5A / 750W P.F. >0,9 -12V 0,3A / 3,6W +5VsB 3,0A / 15W Maximum Power 750W 20+4PIN ATX 1 8 PIN EPS (4+4) 1 8 PIN PCIe (6+2) 4 SATA 9 MOLEX 3 FLOPPY 1 20+4PIN ATX 600 8 PIN EPS (4+4) 700 8 PIN PCIe (6+2) 2x 600/150 SATA 3x 800/150/150 MOLEX 700/150/150/150 FLOPPY Molex Specification ATX 12V 2.3 Form factor PS II Efficiency 80 PLUS Gold Dimension (DxWxH) 160 mm x 150 mm x 86 mm PFC Active PFC Fan 140mm silent fan Security OVP (Over voltage protection) OPP (Over power protection) OCP (Over current protection) SCP (Short-circuit protection) OTP (Over temperature protection) AFC (Automatic Fanspeed Control) SIP (Surge & Inrush Protection) UVP (Undervoltage Protection) No-load operation
Specificație produs
Dischetă 1
MOLEX 3
Puterea SATA 9
8-pin (6+2) PCI-E 4
8-pin (4+4) ATX/ESP 12V 1
24-pin (20+4) ATX power 1
Cablaj modular Fully Modular
Culoare Black | Чёрный

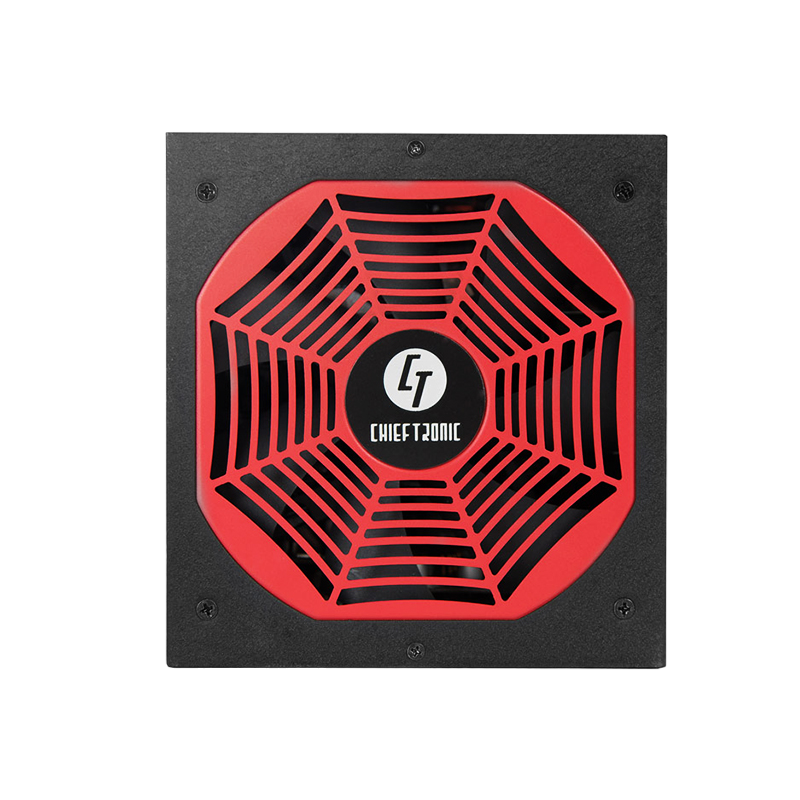

Dimensiune ventilatoare 140 mm
Clasa de eficiență energetică 80+ Gold
Tensiune de intrare 100~240 VAC
Versiunea ATX ATX 12V 2.3
Corecția factorului de putere Active PFC
Format ATX
Tip Sursă Alimentare Internal
Aplicare (Utilizare) PC
Tip PC Power Supply
