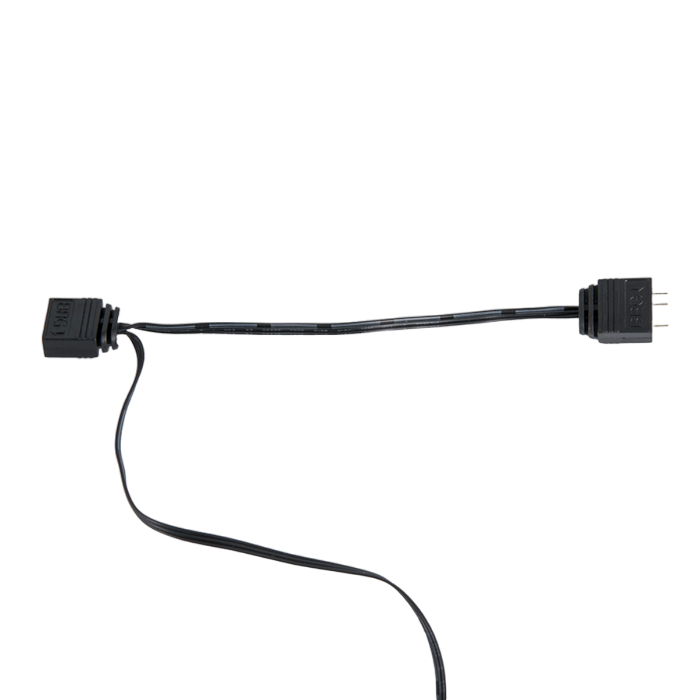

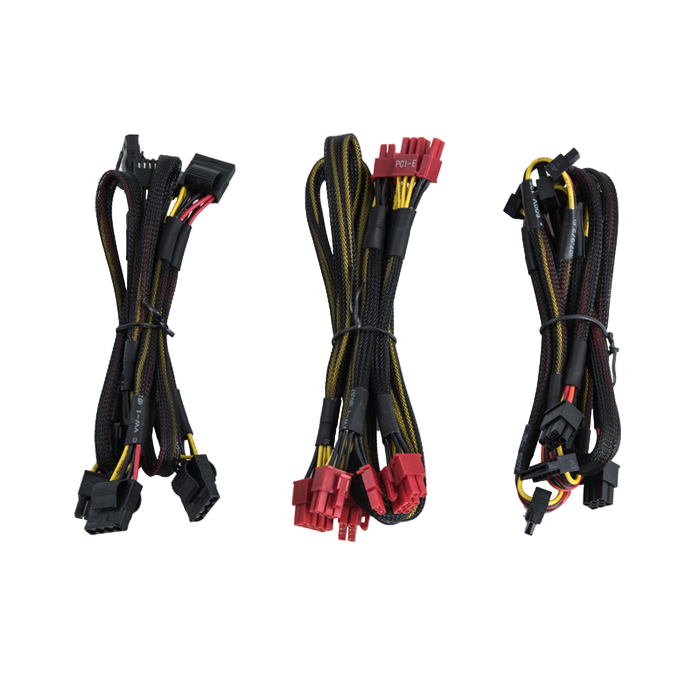

. Performance Model Photon 750W Article no. CTG-750C-RGB EAN code 753263075925 Gewicht (Netto/Brutto) 2,15 kg / 2,55 kg AC Input 230V / 6,3A Frequency 50Hz +5V 22A +3,3V 22A +5V & +3,3V combined 130W +12V 1 30A +12V 2 30A +12V 1 & +12V 2 combined 675W P.F. >0,9 -12V 0,3A / 3,6W +5VsB 2,5A / 12,5W Maximum Power 750W Connectors 24PIN ATX 1 8 PIN EPS (4+4) 1 8 PIN PCIe (6+2) 4 SATA 6 MOLEX 4 FLOPPY 2 +5V RGB LED 1 Cable length 24PIN ATX 550 8 PIN EPS (4+4) 600 8 PIN PCIe (6+2) 2x 550/150 SATA 2x 450/150/150 MOLEX 2x 450/150/150 FLOPPY Molex +5V RGB LED 600/100 Features Specification ATX 12V 2.3 Form factor PS II Efficiency >85% Lightning modes 17x dynamic modes integrated Dimension (DxWxH) 140 mm x 150 mm x 87 mm PFC Active PFC (0,9) (only 230V) Fan 120mm silent RGB Rainbow fan Security UVP (Undervoltage protection) OVP (Overvoltage protection) SCP (Short-circuit protection) OPP (Overload protection) AFC (Automatic Fanspeed Control) SIP (Surge & Inrush Protection) Warranty 24 Months
Specificație produs
| Tip |
PC Power Supply |
| Dischetă |
2 |
| MOLEX |
4 |
| Puterea SATA |
6 |
| 8-pin (6+2) PCI-E |
4 |
| 6-pin PCI-E |
-- |
| 8-pin ESP 12V |
-- |
| 8-pin (4+4) ATX/ESP 12V |
1 |
| 24-pin (20+4) ATX power |
1 |
| Cablaj modular |
Semi-modular |
| Culoare |
Black | Чёрный |
| Dimensiune ventilatoare |
120 mm |
| Tensiune de intrare |
200~240 VAC |
| Clasa de eficiență energetică |
80+ |
| Versiunea ATX |
ATX 12V 2.3 |
| Corecția factorului de putere |
Active PFC |
| Format |
ATX |
| Tip Sursă Alimentare |
Internal |
| Aplicare (Utilizare) |
PC |
| 4-pin ATX 12V |
-- |
