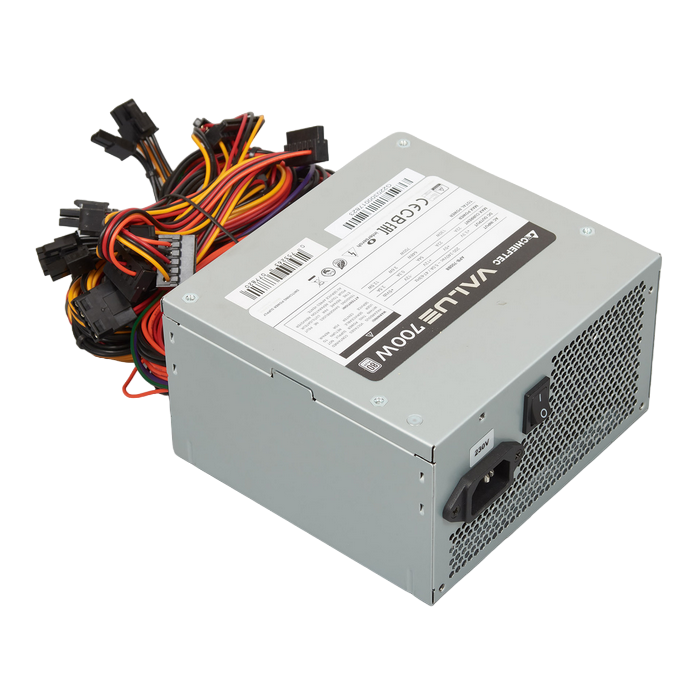

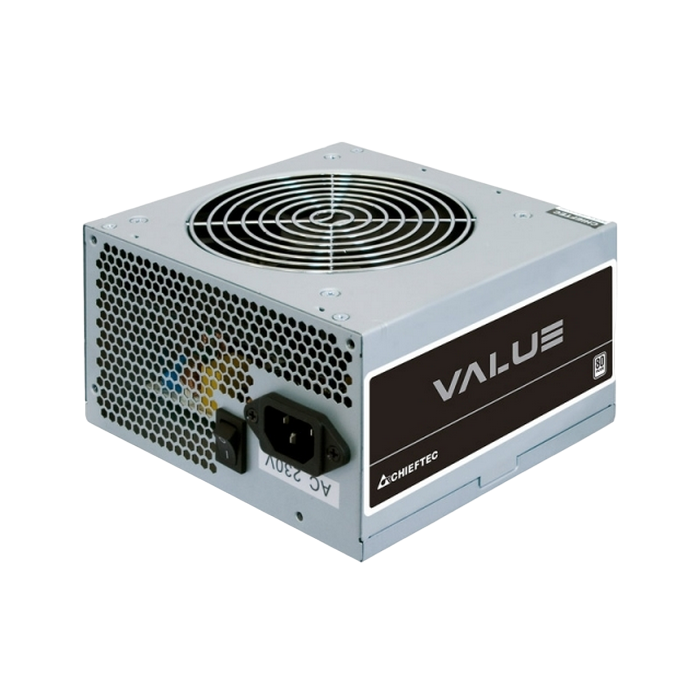

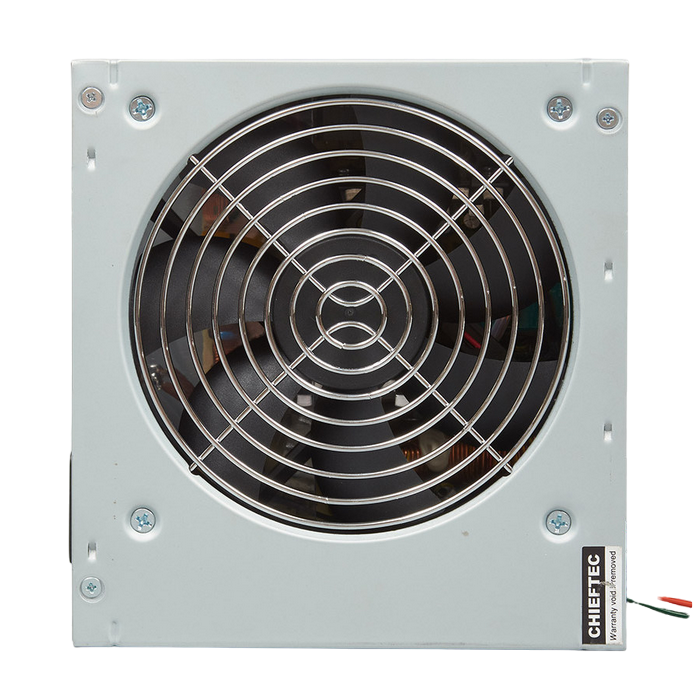

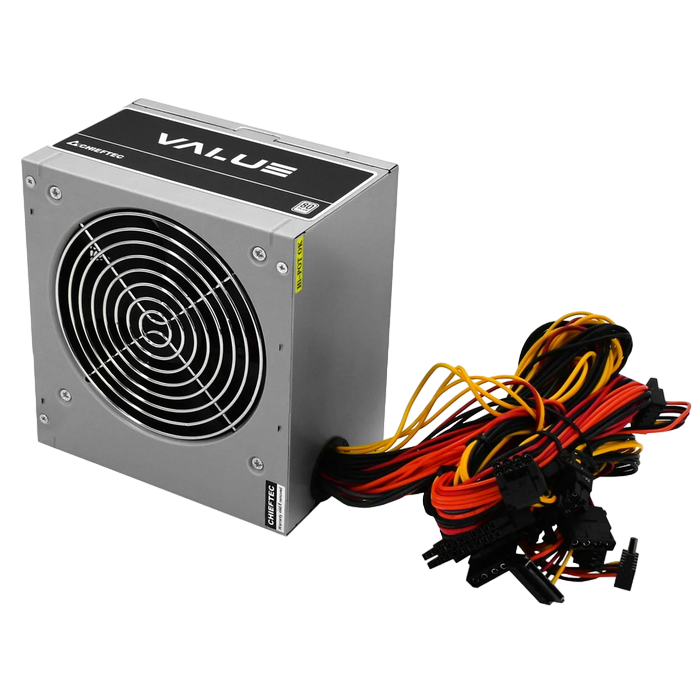

Power Supply ATX 700W Chieftec VALUE APB-700B8, 80+, 120mm, Active PFC, w/o power cord, Silver

. Model VALUE 700W Article no. APB-700B8 EAN code 0753263077820 Weight (without/with package) 1.42kg / 1.57kg AC Input 200-240V / 5.0A Frequency 47 - 63Hz +5V 22A +3,3V 22A +5V & +3,3V combined 130W +12V1 54A +12V2 -- +12V1, +12V2 combined 648W P.F. >0,9 -12V 0,3A / 3,6W +5VSB 2,5A / 12,5W Maximum Power 700W Connectors 20+4 PIN ATX 1 8 PIN EPS (4+4) 1 8 PIN PCIe (6+2) 2 SATA 4 MOLEX/FLOPPY 2/1 Cable length (mm) 20+4 PIN ATX 550 8 PIN EPS (4+4) 550 8 PIN PCIe (6+2) 550/150 SATA 2x500/150 MOLEX/FLOPPY 500/150/150 Features ATX12V Version ATX 12V 2.3 Efficiency 80 PLUS® 230V EU Dimension (DxWxH) 140 mm x 150 mm x 87 mm PFC Active PFC (0.9) (only 230V) Fan 120mm silent fan Security AFC (Automatic Fan speed Control) OPP (Over Power Protection) OVP (Over Voltage Protection) SCP (Short Circuit Protection) SIP (Surge & Inrush Protection) UVP (Under Voltage Protection)
Specificație produs
Corecția factorului de putere Active PFC
Format ATX
Aplicare (Utilizare) PC
Tip PC Power Supply
Versiunea ATX ATX 12V 2.3
Clasa de eficiență energetică 80+
Dimensiune ventilatoare 120 mm
Tensiune de intrare 200~240 VAC
Dischetă 1
MOLEX 2
Puterea SATA 4
8-pin (6+2) PCI-E 2
8-pin (4+4) ATX/ESP 12V 1
24-pin (20+4) ATX power 1
Culoare Grey | Серый
