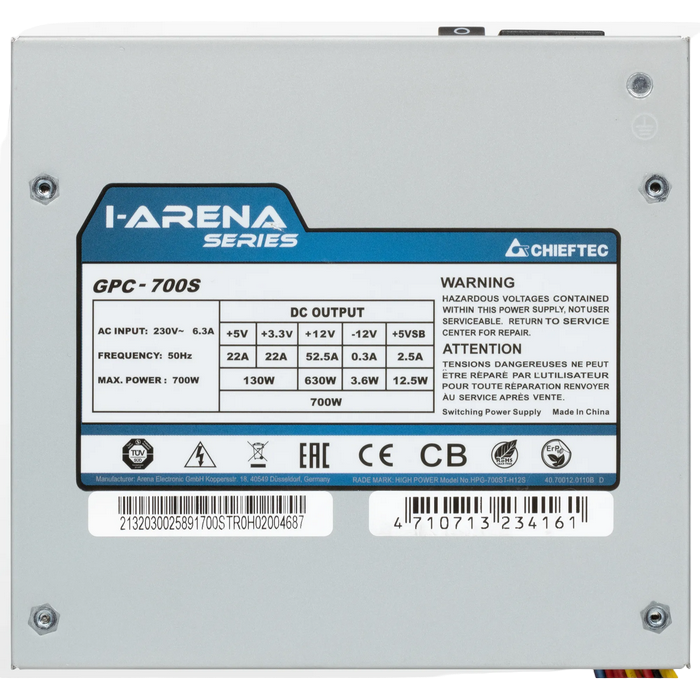

. Performance AC Input: 230V / 5A Frequency: 47 - 63Hz +5V: 22A +3,3V: 22A +5V & +3,3V combined: 130W +12V 1: 54A / 648W +12V 2: - +12V 1 & +12V 2 combined: - +12V 3: N/A +12V 4: N/A +12V 3 & +12V 4 combined: N/A P.F.: >0,9 -12V: 0,3A / 3,6W +5VSB: 2,5A / 12,5W Maximum Load: 700W Native cable 20+4PIN ATX: 1 SATA: 6 MOLEX: 2 Floppy: 1 4PIN 12V: - 8PIN 12V: - 8PIN (4+4) 12V: 1 6PIN PCIe: - 8PIN (6+2) PCIe: 2 Features Spezification: ATX 12V 2.3 Form factor: PS II Efficiency: > 85% Dimension (DxWxH): 140 mm x 150 mm x 87 mm PFC: Active PFC (0,9) (only 230V) Fan: 120mm silent fan Security: UVP (Undervoltage protection) OVP (Overvoltage protection) SCP (Short-circuit protection) OPP (Overload protection) AFC (Automatic Fanspeed Control) SIP (Surge & Inrush Protection) Warranty: 24 Month
Specificație produs
| 6-pin PCI-E |
-- |
| 8-pin ESP 12V |
-- |
| 8-pin (4+4) ATX/ESP 12V |
1 |
| 4-pin ATX 12V |
-- |
| 24-pin (20+4) ATX power |
1 |
| Cablaj modular |
Non-modular |
| Culoare |
Grey | Серый |
| Dimensiune ventilatoare |
120 mm |
| Tensiune de intrare |
200~240 VAC |
| Clasa de eficiență energetică |
80+ |
| Versiunea ATX |
ATX 12V 2.4 |
| Corecția factorului de putere |
Active PFC |
| Tip Sursă Alimentare |
Internal |
| Aplicare (Utilizare) |
PC |
| Tip |
PC Power Supply |
| Format |
ATX |
| 8-pin (6+2) PCI-E |
2 |
| Puterea SATA |
6 |
| Dischetă |
-- |
| MOLEX |
2 |
