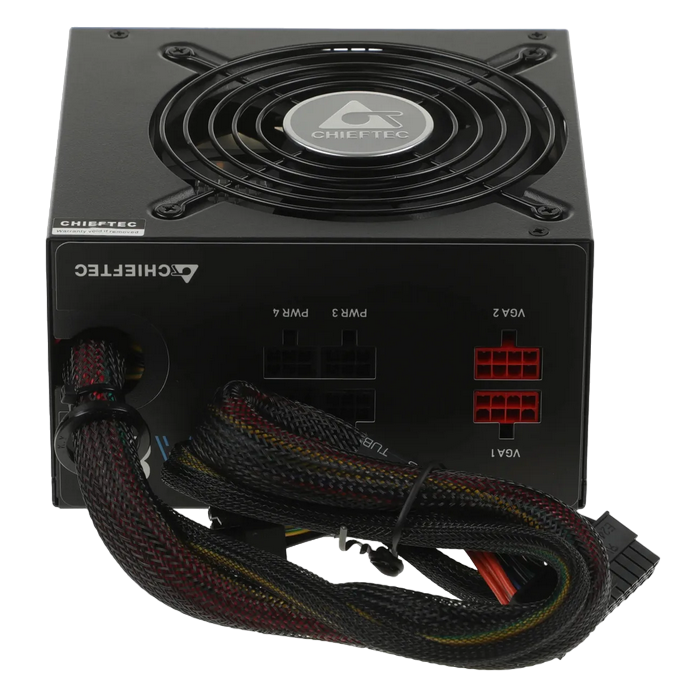

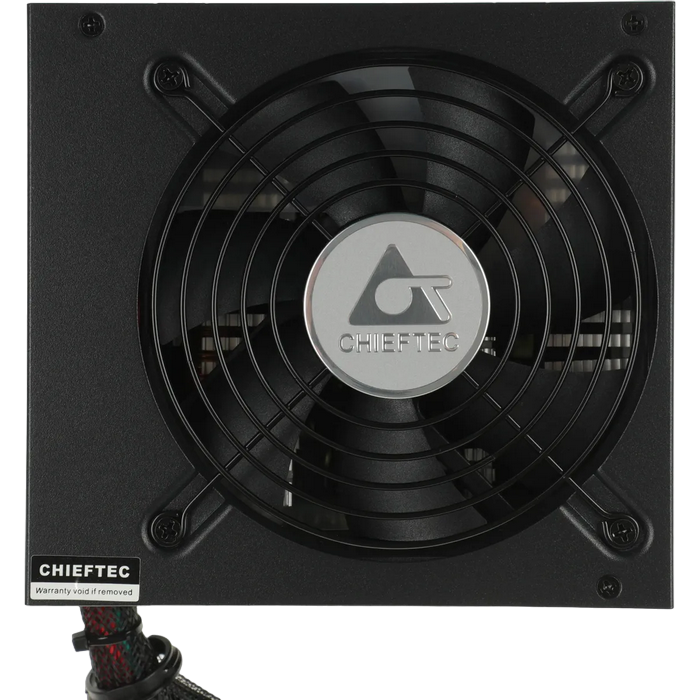

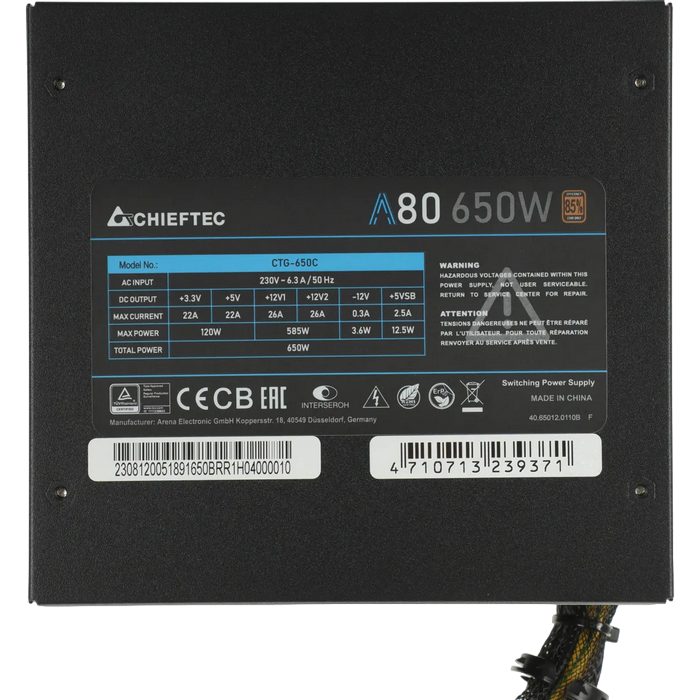

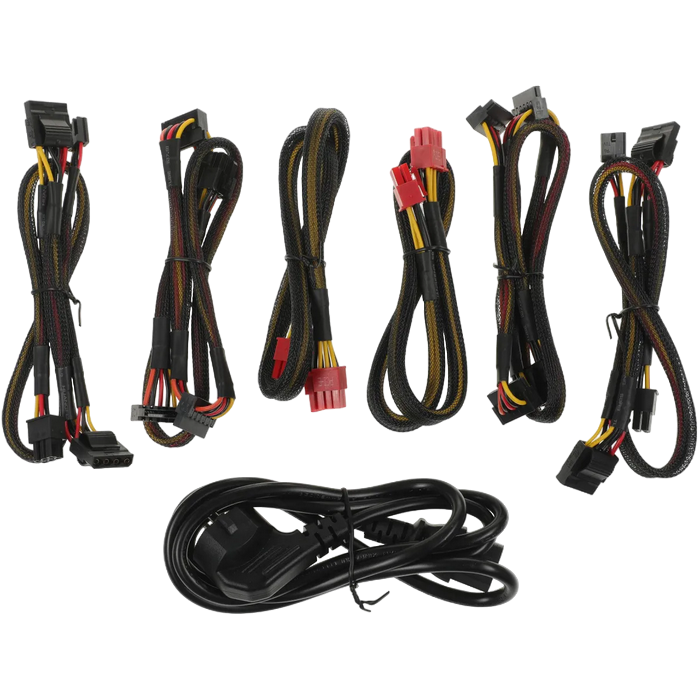

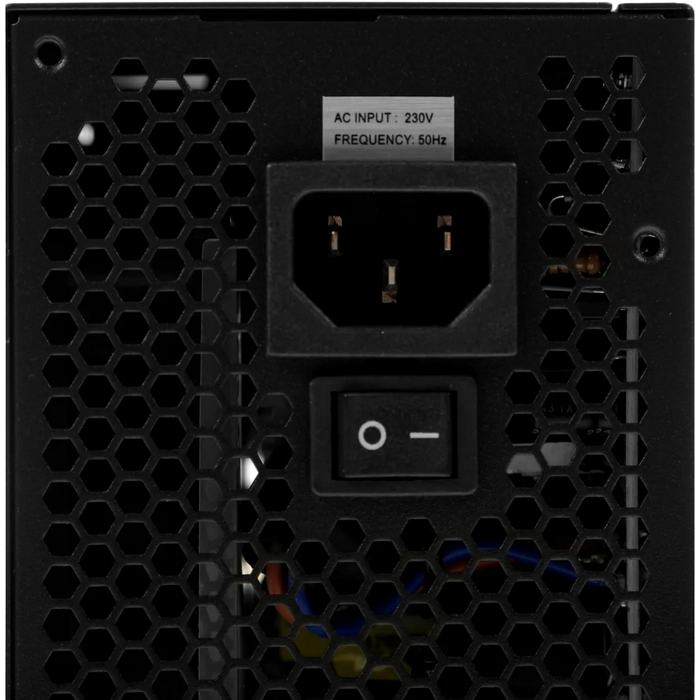

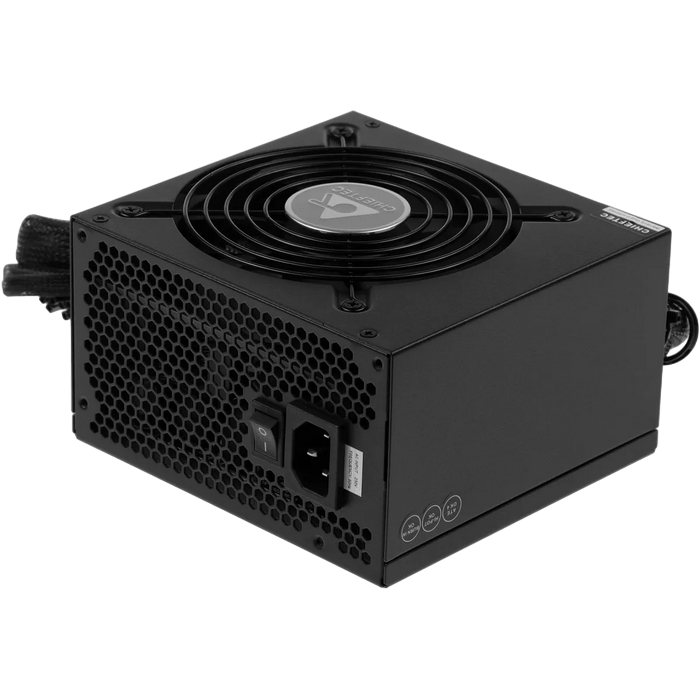

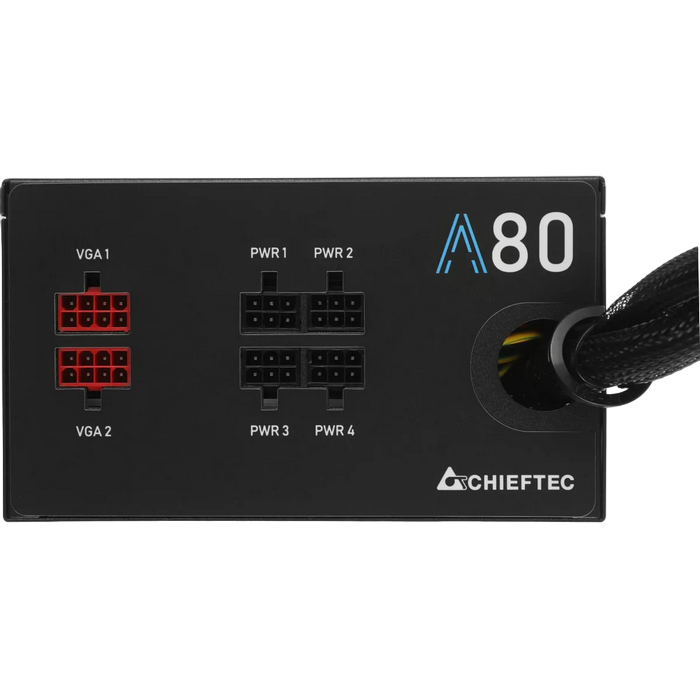

. Performance AC Input: 230V / 6,3A Frequency: 50 Hz +5V: 22A +3,3V: 22A +5V & +3,3V combined: 120W +12V 1: 26A +12V 2: 26A +12V 1 & +12V 2 combined: 585W +12V 3: N/A +12V 4: N/A +12V 3 & +12V 4 combined: N/A P.F.: >0,9 -12V: 0,3A / 3,6W +5VSB: 2,5A / 12,5W Maximum Load: 650W Native cable: 24PIN ATX: 1 SATA: - MOLEX: - Floppy: - 4PIN 12V: - 8PIN 12V: - 8PIN (4+4) 12V: 1 6PIN PCIe: - 8PIN (6+2) PCIe: - Modular cable: 20+4PIN ATX: - SATA: 6 MOLEX: 4 Floppy: - 4PIN 12V: 2 8PIN 12V: - 8PIN (4+4) 12V: - 6PIN PCIe: - 8PIN (6+2) PCIe: 2 Spezification: ATX 12V 2.3 Form factor: PS II Efficiency: > 85% Dimension (DxWxH): 140 mm x 150 mm x 87 mm PFC: Active PFC (0,9) Fan: 120mm silent fan Security: UVP (Undervoltage protection) OVP (Overvoltage protection) SCP (Short-circuit protection) OPP (Overload protection) AFC (Automatic Fanspeed Control) SIP (Surge & Inrush Protection) Warranty: 24 Month https://www.chieftec.eu/en/psus/ps-2/a-80-series/ctg-650c.html
Specificație produs
| Tip Sursă Alimentare |
Internal |
| Aplicare (Utilizare) |
PC |
| Tip |
PC Power Supply |
| Format |
ATX |
| Corecția factorului de putere |
Active PFC |
| Clasa de eficiență energetică |
80+ |
| Versiunea ATX |
ATX 12V 2.3 |
| Dischetă |
2 |
| Puterea SATA |
6 |
| 8-pin (6+2) PCI-E |
2 |
| 6-pin PCI-E |
-- |
| 8-pin ESP 12V |
-- |
| 8-pin (4+4) ATX/ESP 12V |
1 |
| 4-pin ATX 12V |
-- |
| 24-pin (20+4) ATX power |
1 |
| Cablaj modular |
Semi-modular |
| Culoare |
Black | Чёрный |
| Dimensiune ventilatoare |
120 mm |
| Tensiune de intrare |
200~240 VAC |
| MOLEX |
4 |
