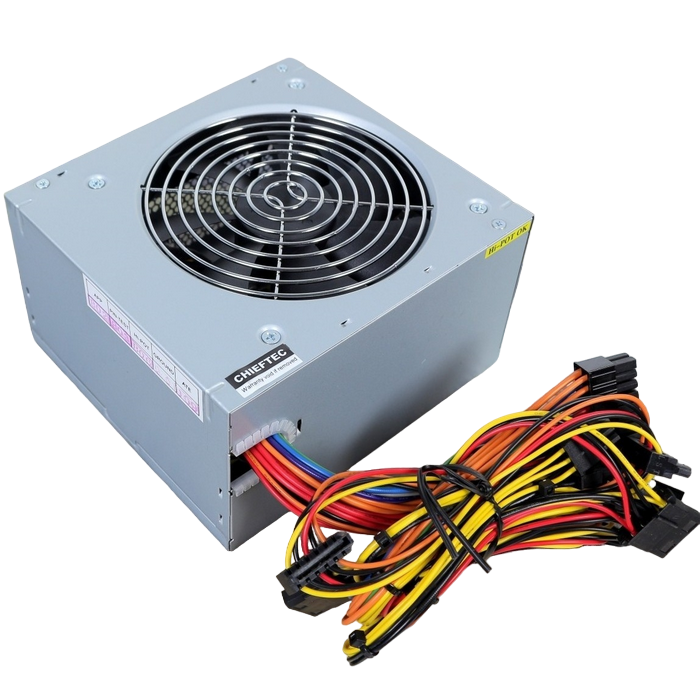

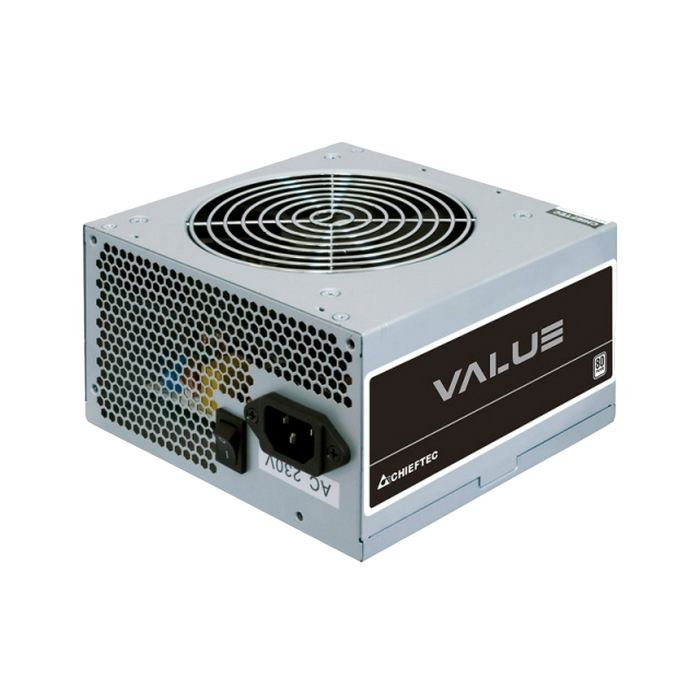

Power Supply ATX 600W Chieftec Value APB-600B8 85+, 120mm, Active PFC, w/o power cord, Silver

№ 22935
. Model VALUE 600W Article no. APB-600B8 EAN code 753263077813 Weight (without/with package) 1.42kg / 1.56kg AC Input 200-240V / 4.5A Frequency 47 - 63Hz +5V 20A +3,3V 20A +5V & +3,3V combined 120W +12V1 46A +12V2 -- +12V1, +12V2 combined 552W P.F. >0,9 -12V 0,3A / 3,6W +5VSB 2,5A / 12,5W Maximum Power 600W ATX12V Version ATX 12V 2.3 Efficiency 80 PLUS® 230V EU Dimension (DxWxH) 140mm x 150mm x 87mm PFC Active PFC (0.9) (only 230V) Fan 120mm silent fan Security AFC (Automatic Fan speed Control) OPP (Over Power Protection) OVP (Over Voltage Protection) SCP (Short Circuit Protection) SIP (Surge & Inrush Protection) UVP (Under Voltage Protection) Connectors 20+4 PIN ATX 1 8 PIN EPS (4+4) 1 8 PIN PCIe (6+2) 2 SATA 4 MOLEX/FLOPPY 2/1
Specificație produs
Dischetă 1
MOLEX 2
Puterea SATA 4
8-pin (6+2) PCI-E 2
8-pin (4+4) ATX/ESP 12V 1
24-pin (20+4) ATX power 1
Culoare Black | Чёрный
Dimensiune ventilatoare 120 mm
Tensiune de intrare 200~240 VAC
Clasa de eficiență energetică 80+
Versiunea ATX ATX 12V 2.3
Format ATX
Tip Sursă Alimentare Internal
Aplicare (Utilizare) PC
Tip PC Power Supply
Corecția factorului de putere Active PFC
