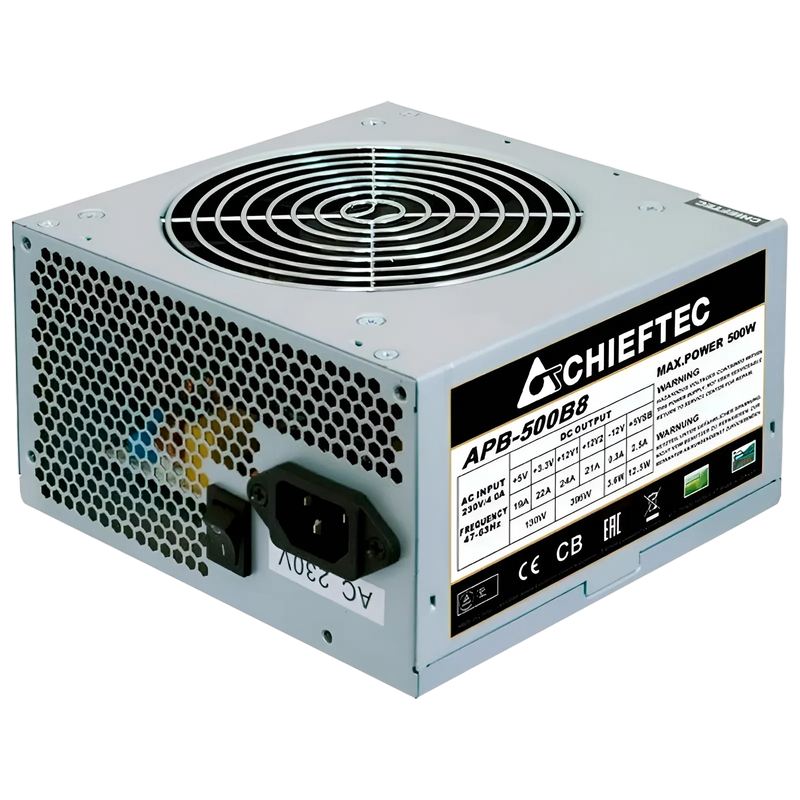

Power Supply ATX 500W Chieftec VALUE APB-500B8, 80+, 120mm, Active PFC, w/o power cord, Silver

№ 24572
. Performance AC Input: 200-240V / 4.0A Frequency: 47-63 Hz +5V: 17.0A +3,3V: 18A +5V & +3,3V combined: 110W +12V: 38A / 456W P.F.: >0,9 -12V: 0,3A / 3,6W +5VSB: 2,5A / 12,5W Maximum Load: 500W Connectors 20+4PIN ATX 1 8PIN EPS (4+4) 1 8PIN (6+2) PCIe 1 MOLEX 2 Floppy 1 SATA 3 Cable length 20+4PIN ATX 500 8 PIN EPS (4+4) 350 8 PIN PCIe (6+2) 350 MOLEX 350/150/150 FLOPPY MOLEX SATA 350/150/150 Features Specification: ATX 12V 2.3 Form factor: PS II Efficiency: 80 PLUS® 230V EU Dimension (DxWxH): 140 mm x 150 mm x 87 mm PFC: Active PFC (0,9) Fan: 120mm silent fan Security: AFC (Automatic Fanspeed Control) OPP (Overload protection) OVP (Overvoltage protection) SCP (Short-circuit protection) SIP (Surge & Inrush Protection) UVP (Undervoltage protection) Warranty: 24 Months
Specificație produs
4-pin ATX 12V --
24-pin (20+4) ATX power 1
Cablaj modular Non-modular
Culoare Silver | Серебристый
Dimensiune ventilatoare 120 mm
Tensiune de intrare 200~240 VAC
Clasa de eficiență energetică 80+
Versiunea ATX ATX 12V 2.3
Corecția factorului de putere Active PFC
Format ATX
Tip Sursă Alimentare Internal
8-pin (4+4) ATX/ESP 12V 1
Aplicare (Utilizare) PC
Tip PC Power Supply
8-pin ESP 12V --
8-pin (6+2) PCI-E 1
6-pin PCI-E --
Dischetă 1
MOLEX 2
Puterea SATA 3
