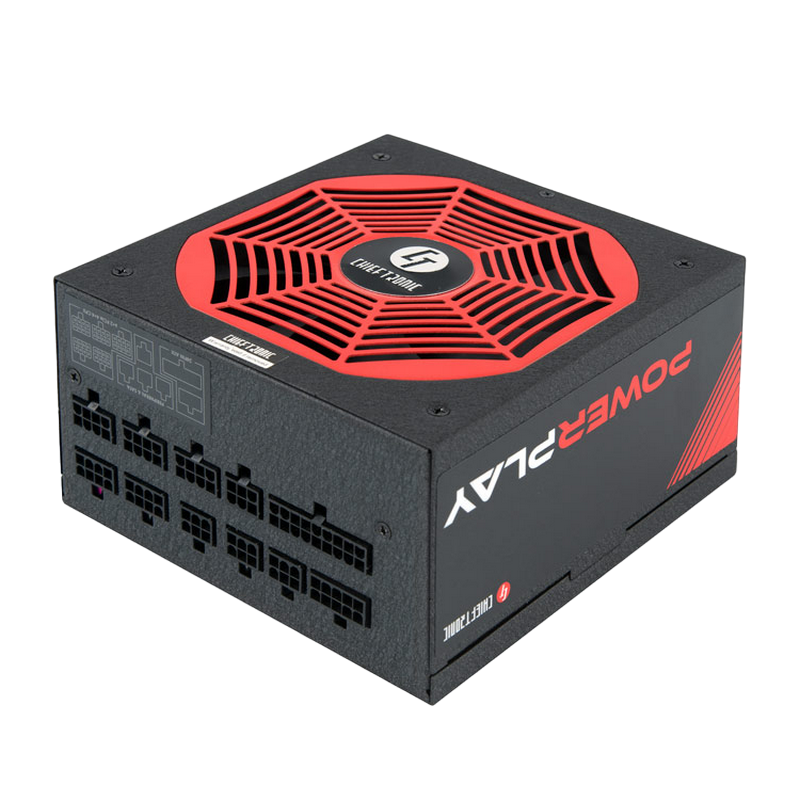

Power Supply ATX 1050W Chieftec Chieftronic GPU-1200FC, 80+ Platinum, 140mm, Active PFC, FBl SR+LLC+DC/DC, Full Modular, Black

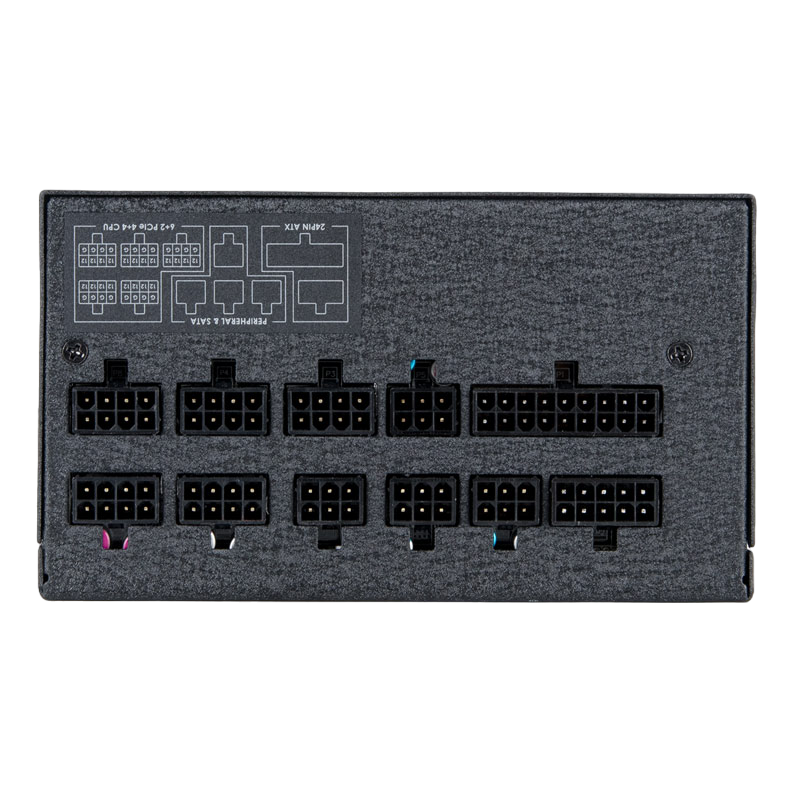

. PN: GPU-1200FC TECHNICAL DATA Model PowerPlay 1200W Article no. GPU-1200FC EAN code 0753263077677 Weight (without/with package) 3.46kg / 3.87kg AC Input 100 - 240V / 14.0A Frequency 47 - 63Hz +5V 25A +3,3V 25A +5V & +3,3V combined 130W +12V1 100A +12V2 - +12V1, +12V2 combined 1200W P.F. >0,9 -12V 0,3A / 3,6W +5VSB 3,0A / 15W Maximum Power 1200W Connectors 20+4 PIN ATX 1 8 PIN EPS (4+4) 2 8 PIN PCIe (6+2) 8 SATA 9 MOLEX/FLOPPY 3/1 Cable length (mm) 20+4 PIN ATX 600 8 PIN EPS (4+4) 700/150 8 PIN PCIe (6+2) 4x 600/150 SATA 3x 500/150/150 MOLEX/FLOPPY 700/150/150/150 Features ATX12V Version ATX 12V 2.53 Efficiency 80+Platinum Dimension (DxWxH) 160 mm x 150 mm x 87 mm PFC Active PFC Fan 140mm silent fan Security AFC (Automatic Fan speed Control) OCP (Over Current Protection) OPP (Over Power Protection) OTP (Over Temperature Protection) OVP (Over Voltage Protection) SCP (Short Circuit Protection) SIP (Surge & Inrush Protection) UVP (Under Voltage Protection)
Specificație produs
Tip PC Power Supply
Aplicare (Utilizare) PC
Format ATX
Tip Sursă Alimentare Internal
Dischetă 1
Puterea SATA 9
8-pin (6+2) PCI-E 8
8-pin (4+4) ATX/ESP 12V 2
24-pin (20+4) ATX power 1
Cablaj modular Fully Modular
Culoare Black | Чёрный
Dimensiune ventilatoare 140 mm
Tensiune de intrare 100~240 VAC
Clasa de eficiență energetică 80+ Platinum
Versiunea ATX ATX 12V 2.53
Corecția factorului de putere Active PFC
MOLEX 3
