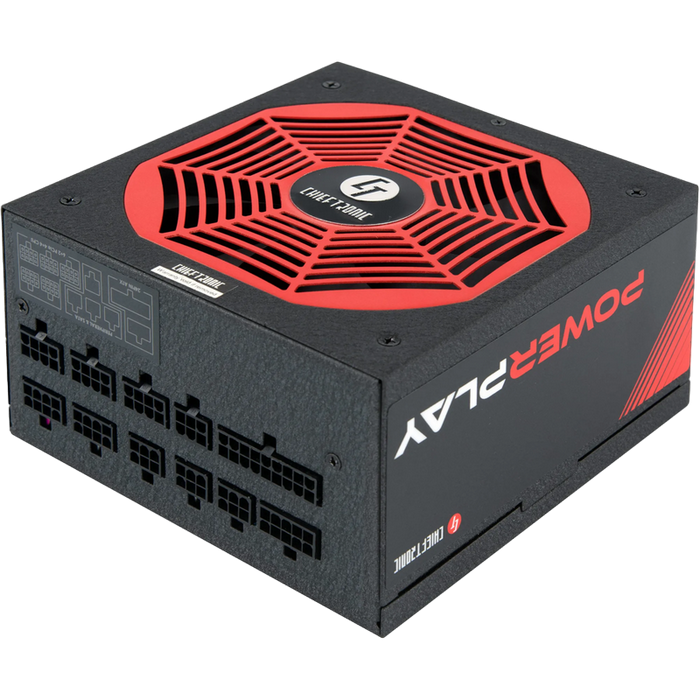

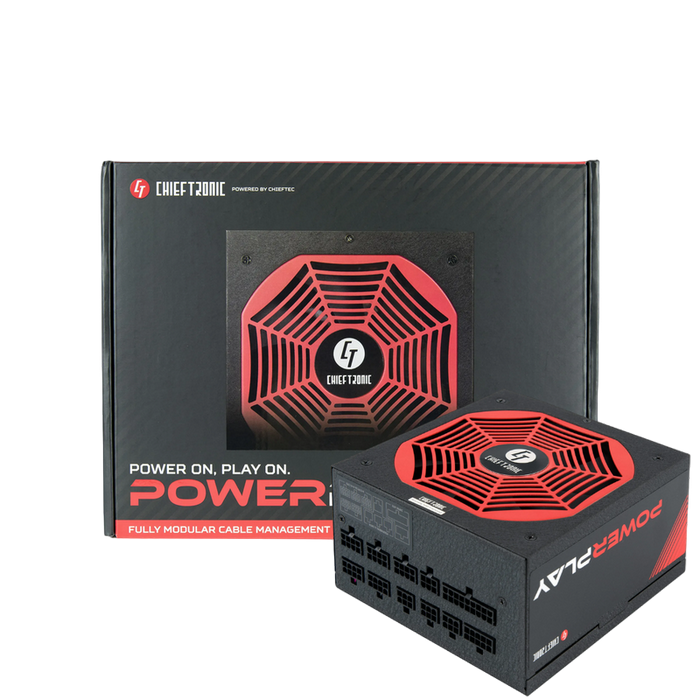

Power Supply ATX 1050W Chieftec Chieftronic GPU-1050FC, 80+ Platinum, 140mm, Active PFC, FBl SR+LLC+DC/DC, Full Modular, Black

№ 22995

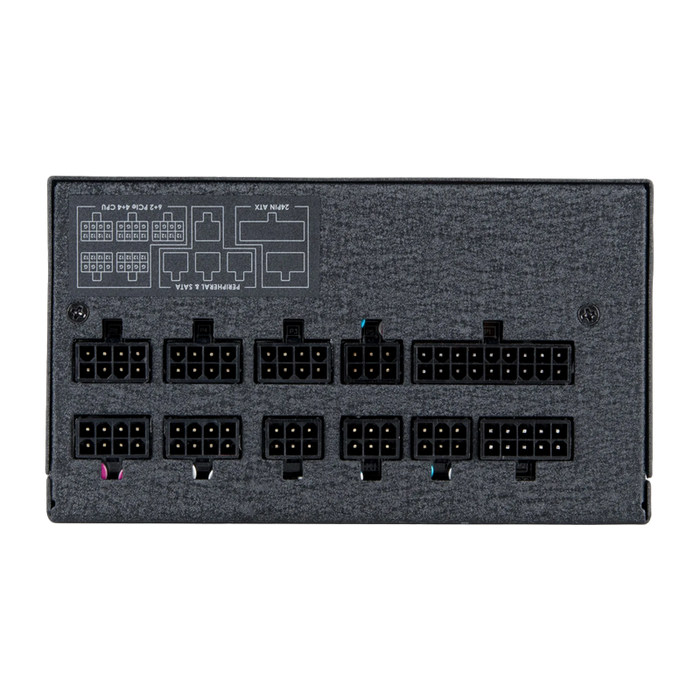

. TECHNICAL DATA Model PowerPlay 1050W Article no. GPU-1050FC EAN code 0753263076106 Weight (without/with package) 3.46kg / 3.87kg AC Input 100 - 240V / 13.0A Frequency 47 - 63Hz +5V 22A +3,3V 22A +5V & +3,3V combined 120W +12V1 83.33A +12V2 - +12V1, +12V2 combined 999.96W P.F. >0,9 -12V 0,3A / 3,6W +5VSB 3,0A / 15W Maximum Power 1050W Connectors 20+4 PIN ATX 1 8 PIN EPS(4+4) 2 8 PIN PCIe (6+2) 8 SATA 9 MOLEX/FLOPPY 3/1 Cable length (mm) 20+4 PIN ATX 600 8 PIN EPS(4+4) 700/150 8 PIN PCIe (6+2) 4x 600/150 SATA 3x 800/150/150 MOLEX/FLOPPY 700/150/150/150 Features ATX12V Version ATX 12V 2.53 Efficiency 80+Platinum Dimension (DxWxH) 160 mm x 150 mm x 87 mm PFC Active PFC Fan 140mm silent fan Security AFC (Automatic Fan speed Control) OCP (Over Current Protection) OPP (Over Power Protection) OTP (Over Temperature Protection) OVP (Over Voltage Protection) SCP (Short Circuit Protection) SIP (Surge & Inrush Protection) UVP (Under Voltage Protection)
Specificație produs
MOLEX 3
Puterea SATA 9
8-pin (6+2) PCI-E 8
8-pin (4+4) ATX/ESP 12V 2
24-pin (20+4) ATX power 1
Cablaj modular Fully Modular
Culoare Black | Чёрный
Dimensiune ventilatoare 140 mm
Tensiune de intrare 100~240 VAC
Clasa de eficiență energetică 80+ Gold
Versiunea ATX ATX 12V 2.53
Dischetă 1
Corecția factorului de putere Active PFC
Format ATX
Aplicare (Utilizare) PC
Tip Sursă Alimentare Internal
Tip PC Power Supply
