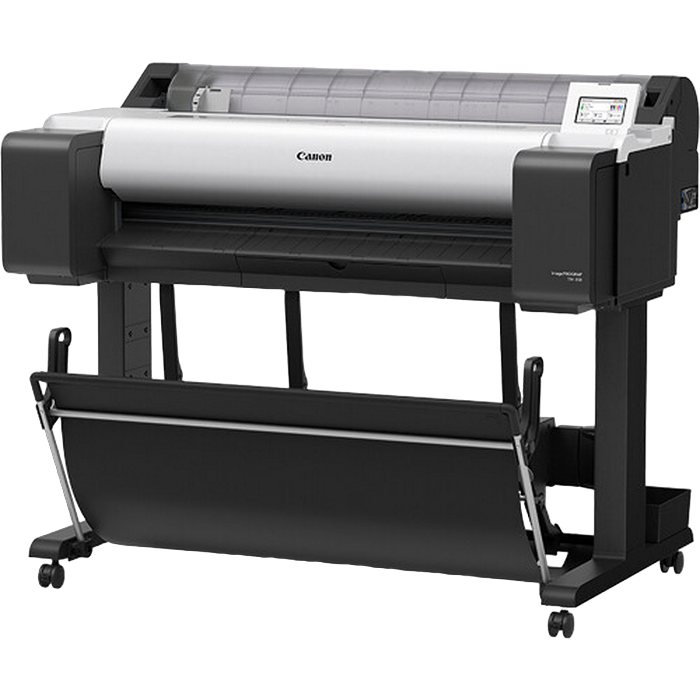

Plotter Canon imagePROGRAF TM-350

Printer Type: 5 Colours, 36", 4.3” operational panel Print Technology: Canon Bubblejet on Demand 6 colours integrated type (6 chips per print head x 1 print head) Print Resolution: 2,400 x 1,200 dpi Number of Nozzles: Total : 15360 nozzles MBK : 5120 nozzles BK, C, M, Y: 2560 nozzles each Line Accuracy: ±0.1% or less, User adjustments necessary. Printing environment and media must match those used for the adjustments. Nozzle Pitch: 1,200 dpi x 2 lines Ink Droplet Size: minimum 5pl per colour Ink Capacity: Bundled Starter Ink: 490ml (130ml for MBK, 90mlx4 for BK, C, M, Y) Sales Ink: 300 / 130ml (MBK, BK, C, M, Y) Ink Type: Pigment inks : 5 colours MBK/BK/C/M/Y Printer Languages: HP-GL/2, HP RTL, JPEG (Ver. JFIF 1.02), CALS G4 (submission via FTP only) Standard Memory: 2GB, Expansion slot: No Hard Drive: N/A Print Speed CAD Drawing: Plain paper (A1): 0:17 (Fast Economy Mode), 3.2ppm Plain paper (A0): 0:32 (Fast Economy Mode), 0:41 (Fast), 1:08 (Standard) Poster: Plain Paper (A0): 0:37 (Fast Economy Mode), 0:43 (Fast), 1:18 (Standard) Heavy Coated Paper (A0): 1:40 (Fast), 2:33 (Standard) Media Handling Media Feed and Output: Roll Paper : One Roll, Upper-loading, Front Output Cut Sheet : Upper-loading, Front Output (Manual feed using media locking lever) Media Width: Roll paper: 203.2 - 917mm, Cut sheet: 203.2 - 917mm Media Thickness: Roll/Cut : 0.07mm - 0.8mm Minimum Printable Length: Roll paper: 203.2mm, Cut sheet: 279.4mm Maximum Printable Length: Roll paper : 18m (varies according to the OS and application), Cut sheet : 1.6m Maximum Media Roll Diameter: 150mm Media Core Size: Internal diameter of roll core: 2"/3" Margins Recommended Area: Roll paper: Top: 20mm, Bottom: 3mm, Side: 3mm Cut sheet (AppleAirPrint): Top: 20mm, Bottom: 31mm, Side: 3mm Cut sheet (Others): Top: 20mm, Bottom:20mm, Side:3mm Margins Printable Area: Roll paper: Top: 3mm, Bottom: 3mm, Side: 3mm Roll paper (borderless): Top: 0mm, Bottom: 0mm, Side: 0mm Cut sheet (AppleAirPrint): Top: 3mm, Bottom: 12.7mm, Side: 3mm Cut sheet (Others): Top: 3mm, Bottom: 20mm, Side: 3mm Media Feed Capacity: Roll Paper: One roll, Cut Sheet: 1 sheet Standard Interfaces: USB A Port: N/A, USB B Port: Hi-Speed USB Ethernet: IEEE802.3ab(1000base-T), IEEE802.3u(100BASE-TX)/IEEE802.3 (10BASE-T) Wireless LAN: IEEE802.11n/IEEE802.11g/IEEE802.11b Consumables User Replaceable Items: Ink Tank: Magenta :PFI-321(300ml) / PFI-121(130ml), MBK/BK/C/Y:PFI-320(300ml) / PFI-120(130ml) Print Head: PF-06 Cutter Blade: CT-08 Maintenance Cartridge: MC-31 What's in the Box: Printer, Printer Stand, 1 Print head, Power Cable, 1 Set of starter ink tanks, Installation Guide, Safety/Standard Environment leaflet, LFP Eur Address Sheet, Important Information Sheet, Stack Printer Stand Setup Guide, Notice for PosterArtist WEB Optional Items: 2"/3" Roll Holder: RH2-35, IC Card Reader Holder : RA-02
