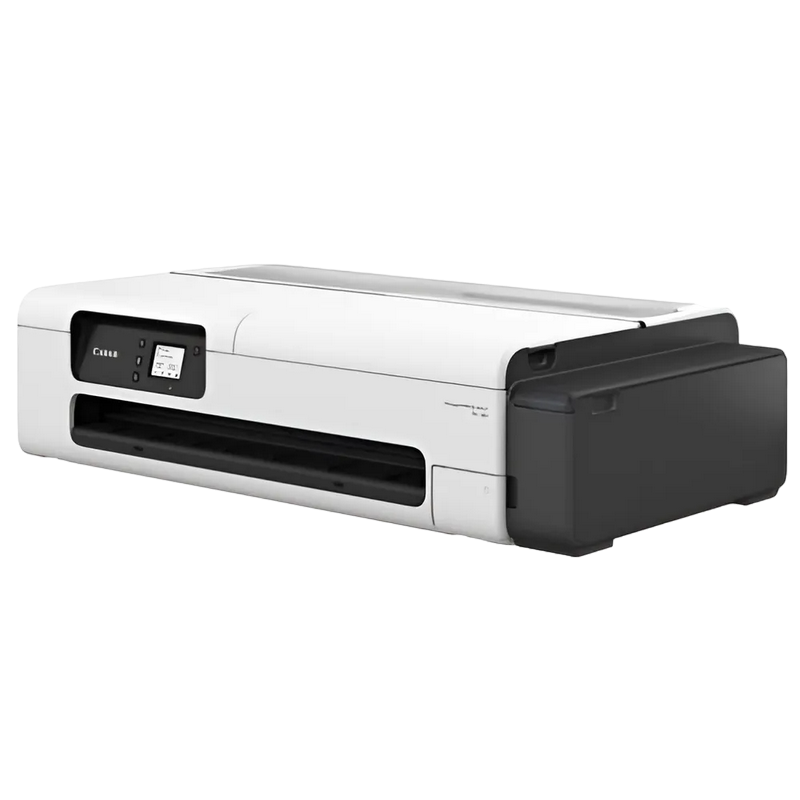

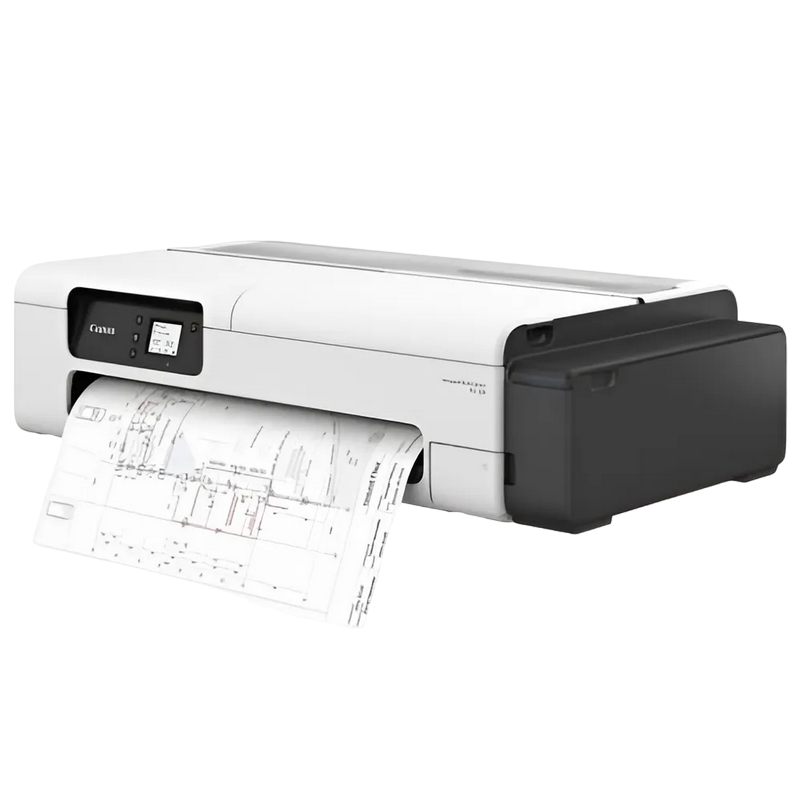

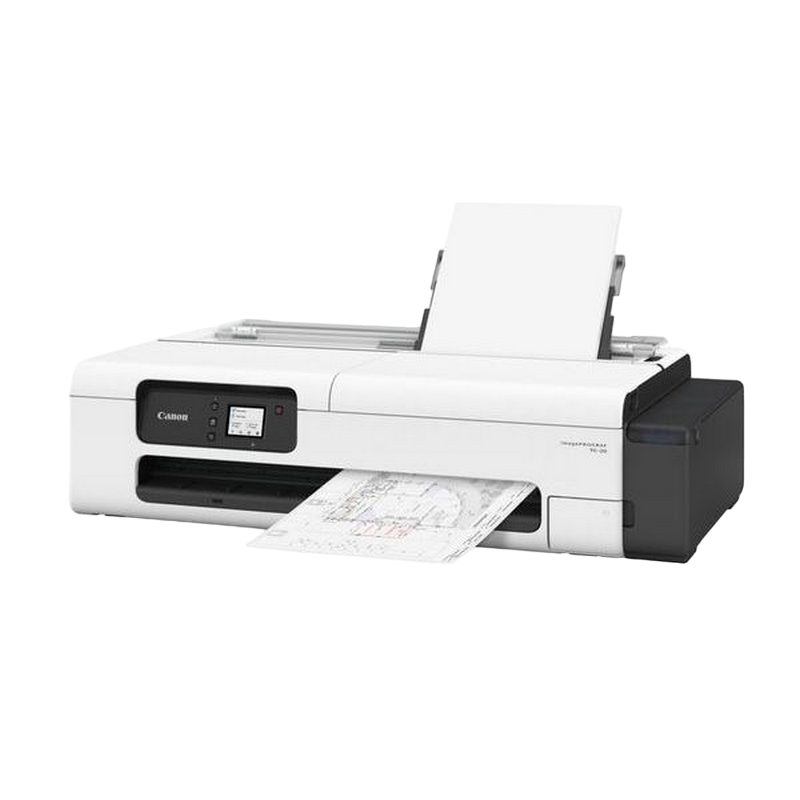

Plotter Canon imagePROGRAF TC-20M

Printer 24" and A4 flatbed scanner Scanner Technology Scan Technology: Flatbed CIS colour scanner Maximum Resolution (dpi): Main scan X sub scan: 1,200 x 2,400 dpi* *Optical resolution is based on the ISO 14473 standard and represents the maximum sampling rate for scanning documents. Scanning Depth (Input/Output): Colour: RGB each 16bit / each8bit, Greyscale: 16bit / 8bit Line Scanning Speed: Colour: 3.5 ms/line at 300 dpi, Grayscale / Monochrome: 1.5 ms/line at 300 dpi Maximum Document Size: A4/LTR(216 x 297mm) Printer Technology Printer Type: 4 Colour 24" Print Technology: Canon Pigment ink 4 colours integrated type (4 chips per print head x 1 print head) Print Speed: CAD Drawing: Plain paper (A1, B&W): 0:33 (Standard) Plain Paper (A1, Colour): 1:03 (Standard) Poster: Plain Paper (A1): 1:10 (Fast), 2:08 (Standard), Coated Paper (A1): 3:10 (Fast), 6:05 (Standard) Print Resolution: 2,400 x 1,200 dpi Number of Nozzles: Total : 4352 nozzles BK : 1280 nozzles C, M, Y : 1024 nozzles each Line Accuracy: ±0.1% or less, User adjustments necessary. Printing environment and media must match those used for the adjustments. Nozzle Pitch: 1,200 dpi x 2 lines Ink Capacity: Bundled Starter Ink: 280ml (70mlx4 for BK, C, M, Y) Sales Ink: 70ml (BK, C, M, Y) Ink Type: Pigment inks : 4 colour BK/C/M/Y Printer Languages: USB Memory Direct Print1: PDF, JPEG (Exif ver2.2/2.21/2.3) Standard Memory: 1GB, Expansion slot : No Hard Drive: No, N/A Media Feed and Output: Roll Paper : One Roll, Front-loading, Front Output Cut Sheet : Auto sheet feeder Media Width: Roll paper : A3, A2, A2+, A1, B2, B3, 18'', 24'', 17'', Cut sheet: 210mm - 297mm Media Thickness: Roll/Cut : 0.08mm - 0.28mm, Minimum Printable Length: Roll/Cut : 203.2mm Maximum Printable Length: Roll paper : 4m, Cut sheet : 432mm Maximum Media Roll Diameter: 110mm Media Core Size; Internal diameter of roll core: 2" Media Feed Capacity: Roll Paper: One roll, Cut Sheet: 100 sheets(A4), 50 sheets (A3) Standard Interfaces: USB A Port: USB Memory (Direct Print) - PDF/JPEG (Exif ver2.2/2.21/2.3) USB B Port: Hi-Speed USB Ethernet: IEEE802.3u(100BASE-TX) / IEEE802.3(10BASE-T) Wireless LAN: IEEE802.11n/IEEE802.11g/IEEE802.11b Consumables: User Replaceable Items: Ink Tank: PFl-050 (70ml) Print Head: PF-08 Maintenance Cartridge: MC-32 What's in the Box: Printer, 1 Print head, Power Cable, 1 Set of starter ink tanks, Installation Guide, Safety/Standard Environment leaflet, EU Biocide Sheet, LFP Eur Address Sheet, Flange protective materials sheet Optional Items: Desktop Basket: BU-06 Printer Stand and Basket: SD-24
