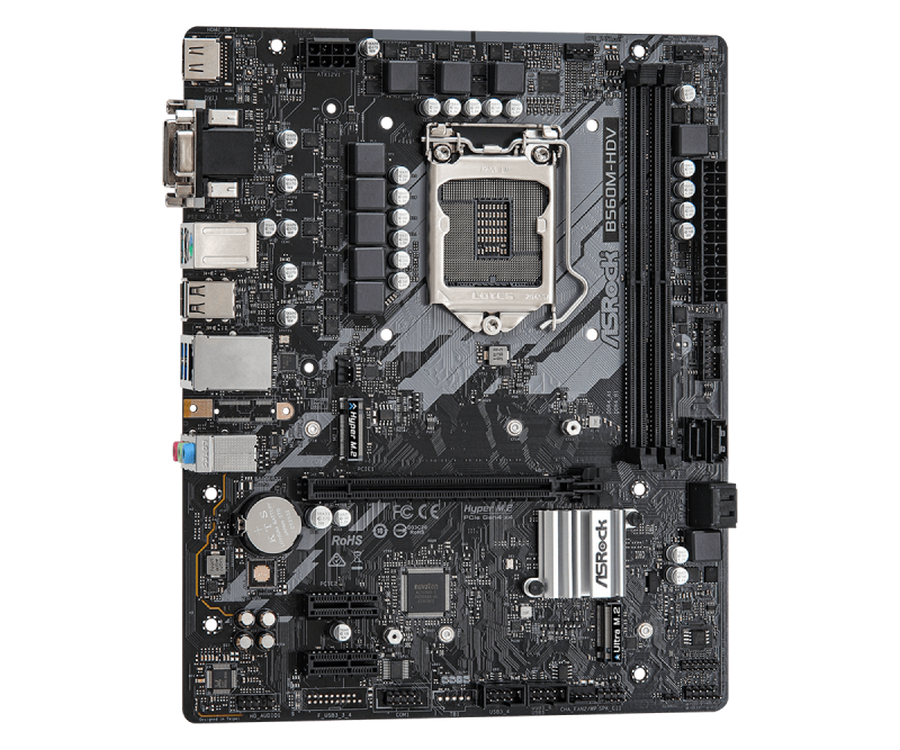

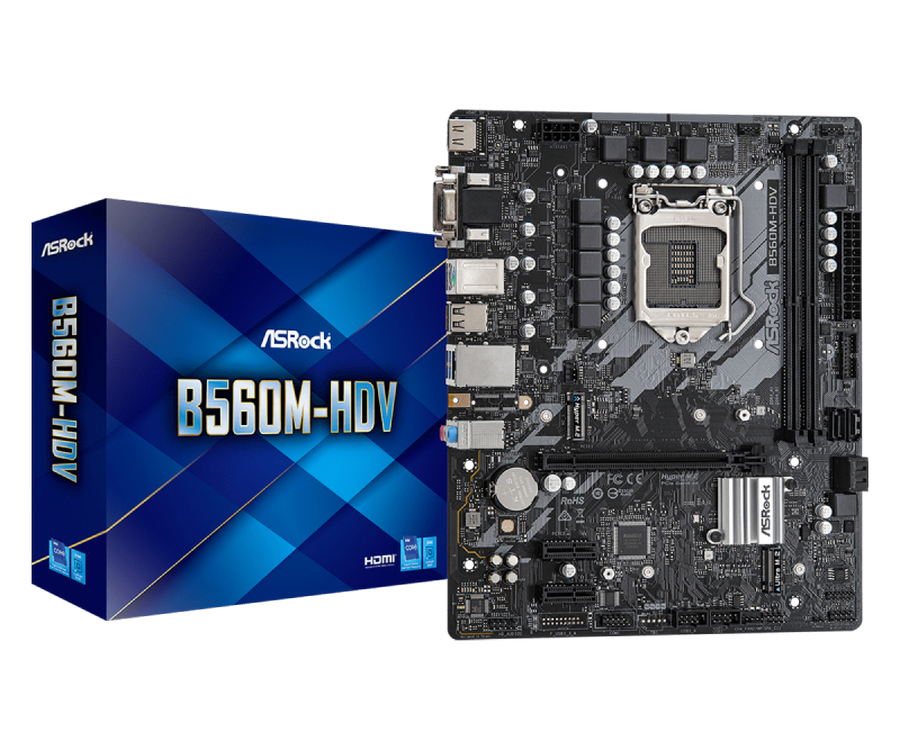

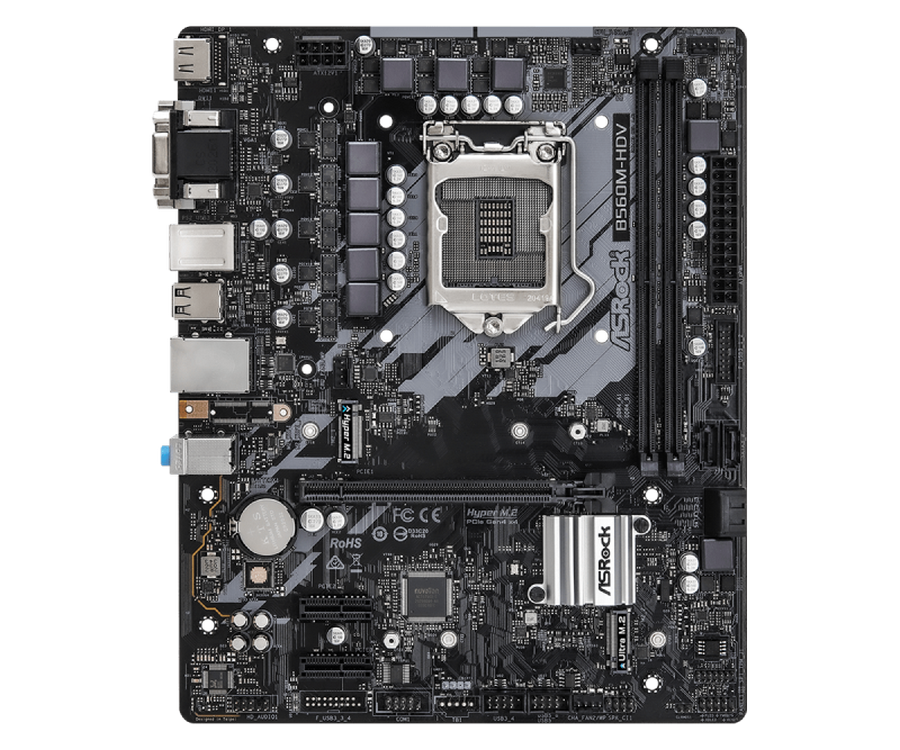

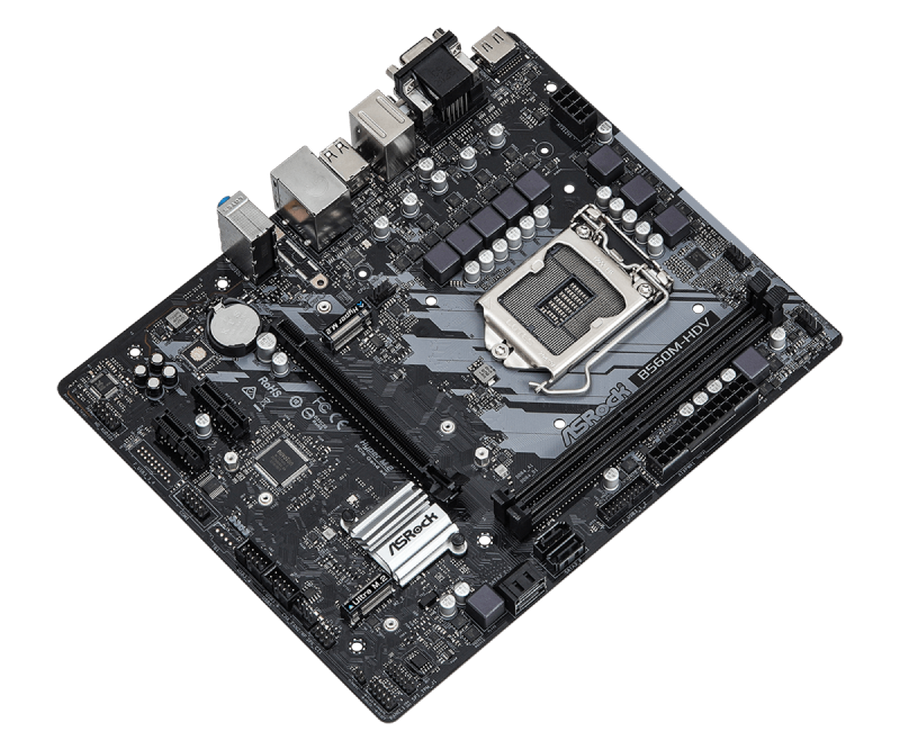

// CPU - Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors (LGA1200) Chipset - Intel® B560 Memory - Dual Channel DDR4 Memory Technology - 2 x DDR4 DIMM Slots - 11th Gen Intel® Core™ Processors support DDR4 non-ECC, un-buffered memory up to 5000+(OC)* - 10th Gen Intel® Core™ Processors support DDR4 non-ECC, un-buffered memory up to 4600+(OC)* - Max. capacity of system memory: 64GB** Graphics - Three graphics output options: D-Sub, DVI-D and HDMI - Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz Audio - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) LAN - Gigabit LAN 10/100/1000 Mb/s - Giga PHY Intel® I219V Slots 11th Gen Intel® Core™ Processors - 1 x PCI Express 4.0 x16 Slot* - 2 x PCI Express 3.0 x1 Slots Storage - 4 x SATA3 6.0 Gb/s Connectors, support Intel® Rapid Storage Technology 18, NCQ, AHCI and Hot Plug - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Socket M2_1 works with 11th Gen Intel® Core™ processors only)* - 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)* USB - 6 x USB 2.0 Ports (Supports ESD Protection) - 6 x USB 3.2 Gen1 Ports (Supports ESD Protection) https://www.asrock.com/MB/Intel/B560M-HDV/index.asp#Overview
Specificație produs
Tip Memorie
DDR4 SDRAM
Sloturi memorie
2x DIMM
Procesoare suportate
Intel Core Gen 11th/10th & Celeron/Pentium
Chipset
Intel B560
Socket
LGA1200
Factor de formă a plăcii de baza
Micro-ATX
Tip
Mainboard
Frecvență memorie
2133 MHz
Capacitate max. Totală RAM
64GB
DisplayPort
--
Porturi USB 2.0
2x USB 2.0 (Support 4 USB Ports)
Conector Thunderbolt
--
USB Type-C
--
USB 3.x Type-A
4x USB 3.2
USB 2.0 Type-A
2x
Conectori SATA
4x SATA 6Gb/s
Suport slot M2 # 4
--
Suport slot M2 # 3
--
HDMI
1x HDMI 2.0
Suport slot M2 # 2
M2: SATA3 or PCIe Gen3 x4 (32 Gb/s)
Bluetooth
--
Controler Wi-Fi
--
Controler Ethernet #2
--
Controler Ethernet #1
Gigabit Ethernet (Intel I219V)
SPDIF port ieșire
--

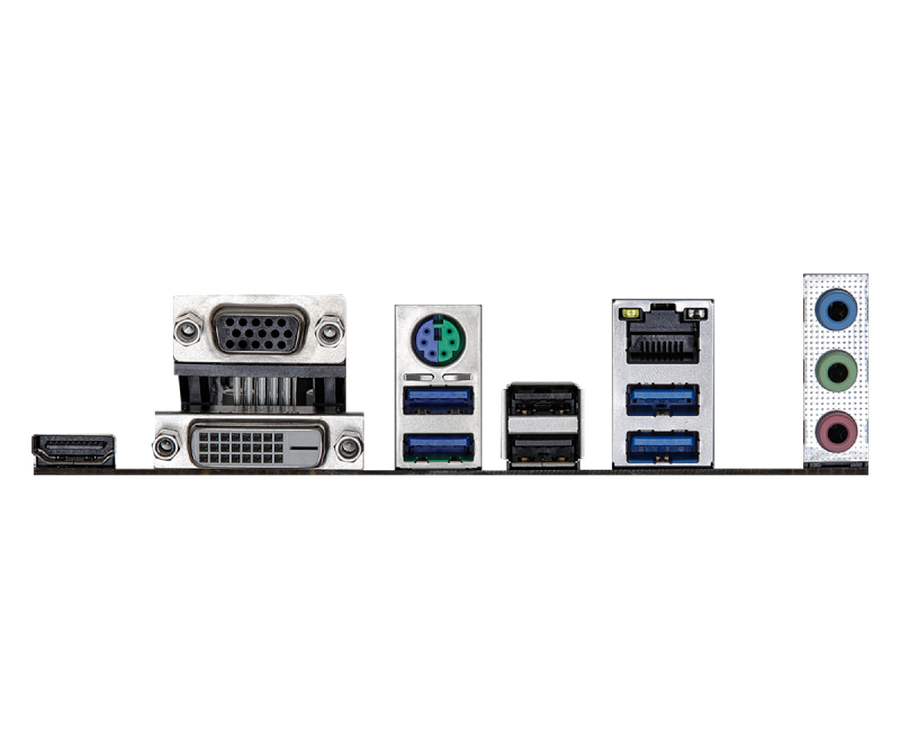

Porturi
HD Audio Jacks: Line in / Front Speaker / Microphone
Chipset audio
7.1 Ch HD Audio, Realtek ALC897
DVI
1x DVI-I
Suport slot M2 # 1
M2: PCIe Gen4 x4 (64 Gb/s)
Porturi USB 3.x
1 x USB 3.2 Gen1 (Supports 2 USB 3.2 Gen1 ports)
