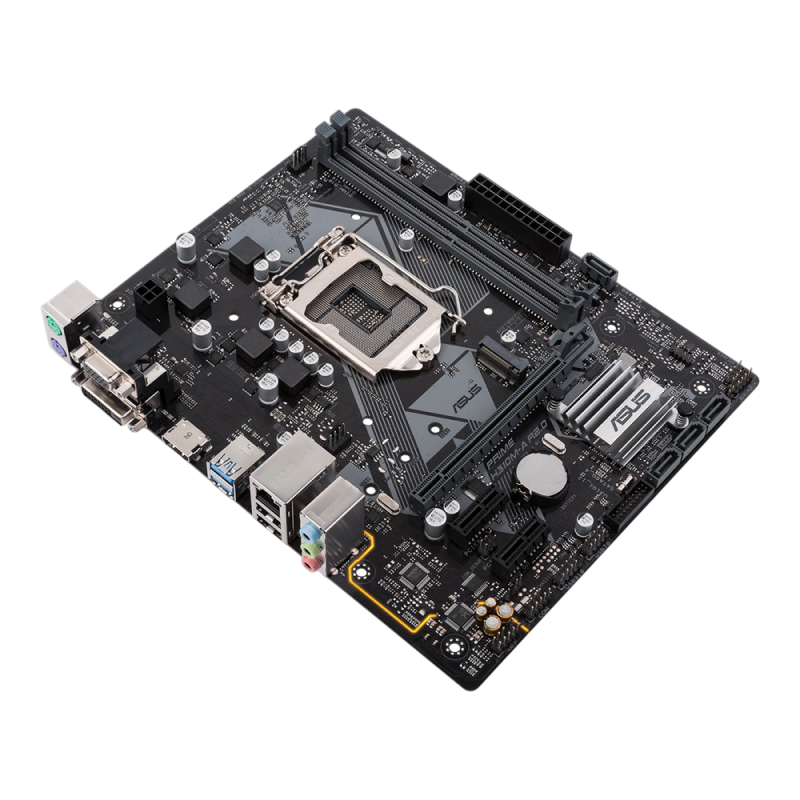

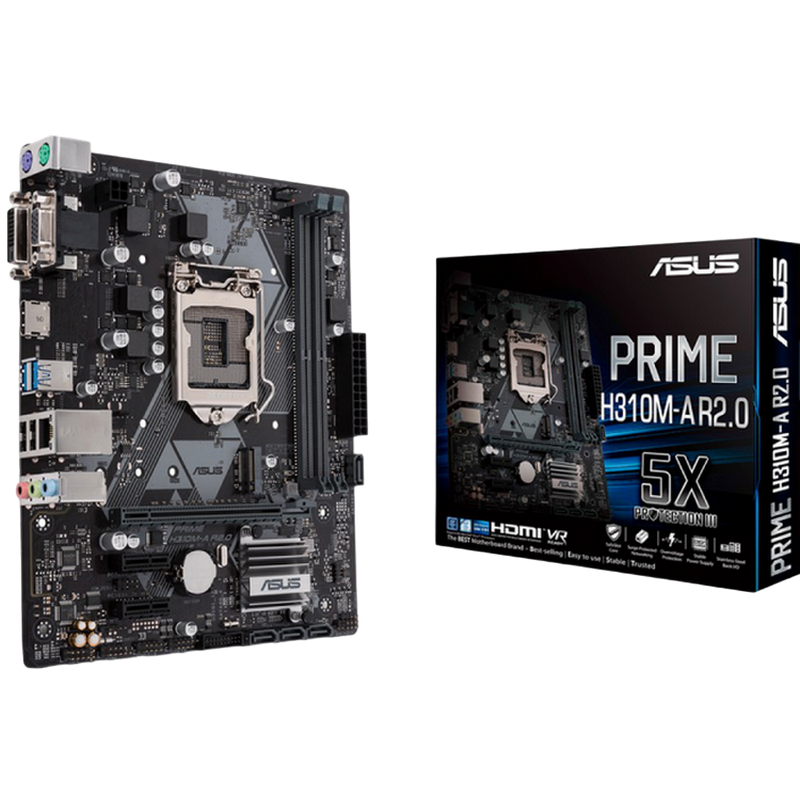

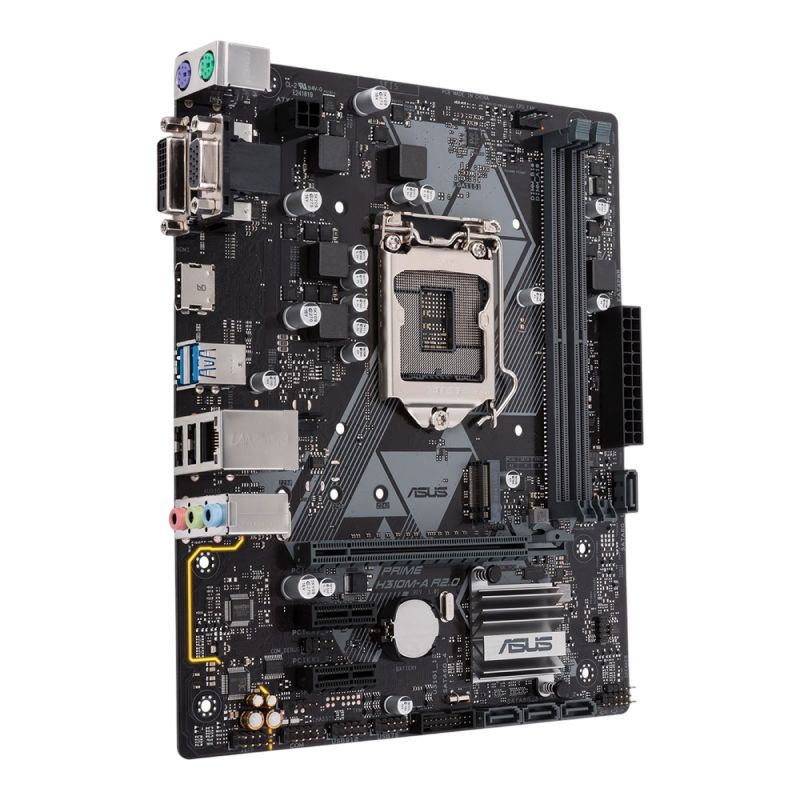

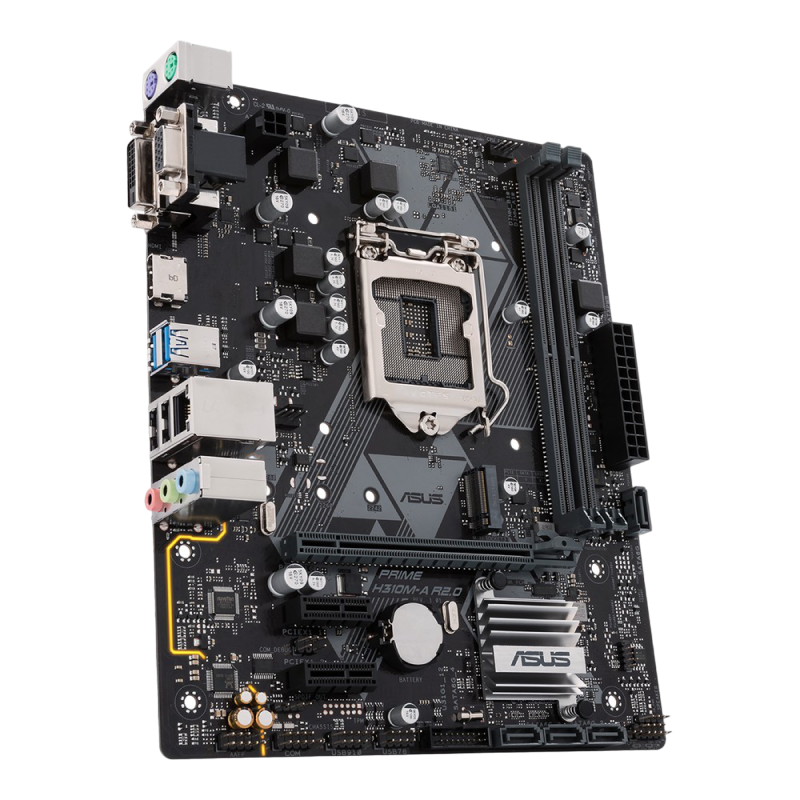

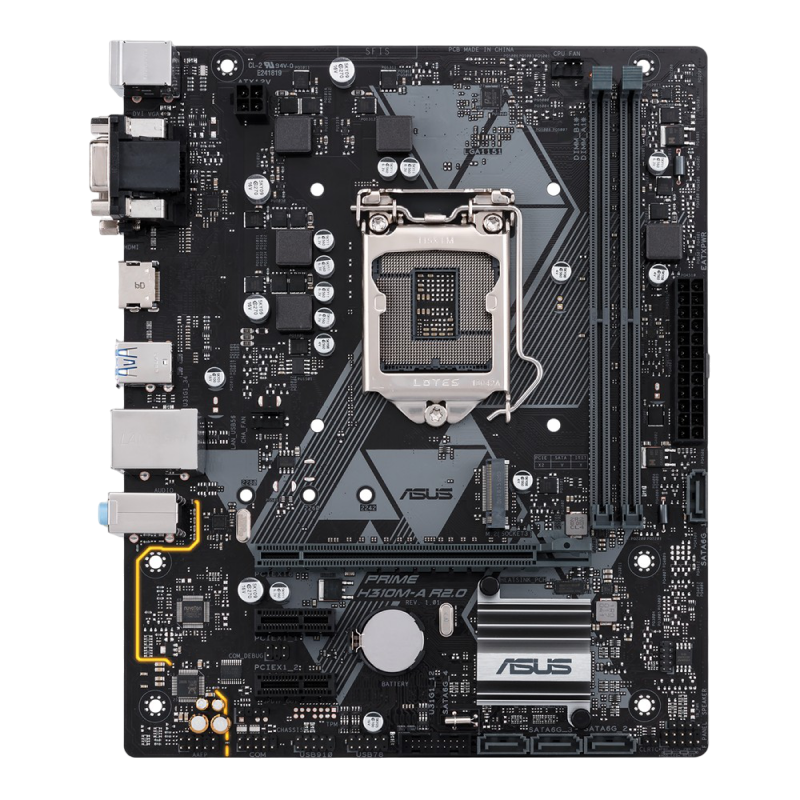

MB Asus PRIME H310M-R R2.0 mATX

// CPU Supports 9th and 8th Gen Intel® Core™ Processors Chipset Intel® H310 Memory 2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Graphic Integrated Graphics Processor- Intel® HD Graphics support Multi-VGA output support : HDMI/DVI-D/D-Sub ports - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz - Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz - Supports HDMI with max. resolution 2560 x 1600 @ 60 Hz Expansion Slots 1 x PCIe 3.0/2.0 x16 (x16 mode, gray) 1 x PCIe 2.0 x1 Storage Intel® H310 Chipset : 4 x SATA 6Gb/s port(s), gray, LAN Realtek® RTL8111H, 1 x Gigabit LAN Audio Realtek® ALC887 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Front Panel Jack-retasking USB Ports Intel® H310 Chipset : 4 x USB 3.1 Gen 1 up to 5Gbps port(s) (2 at back panel, blue, Type-A, 2 at mid-board) 6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board)
