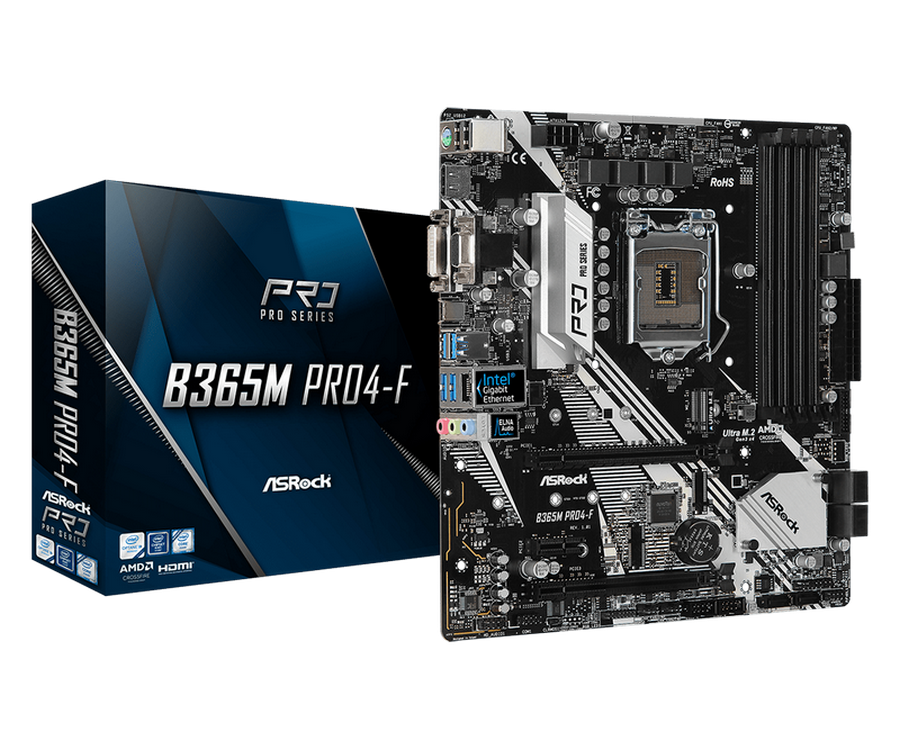

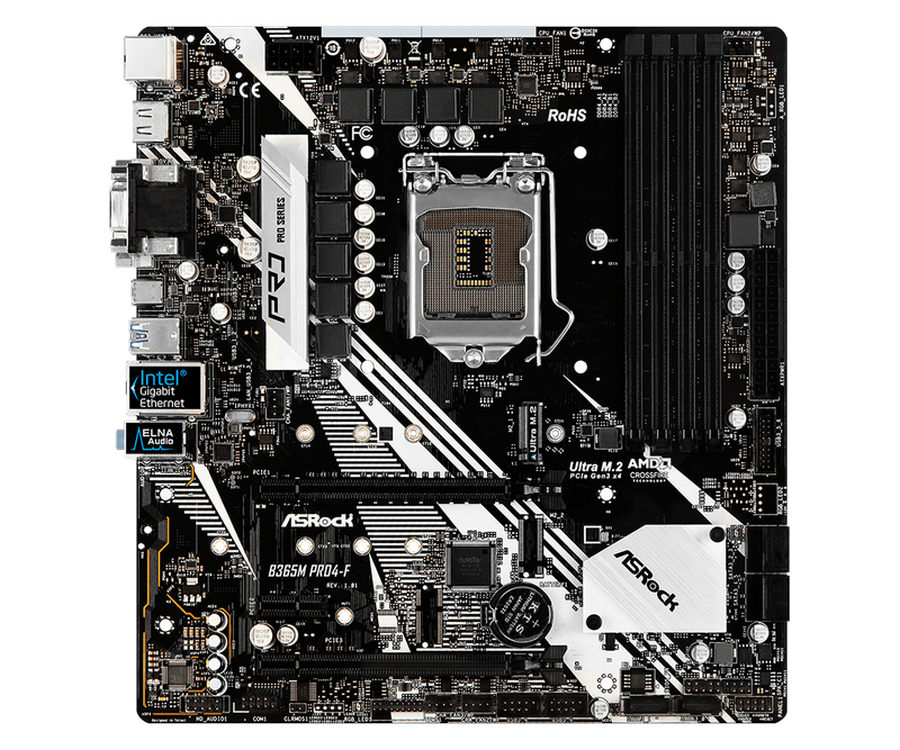

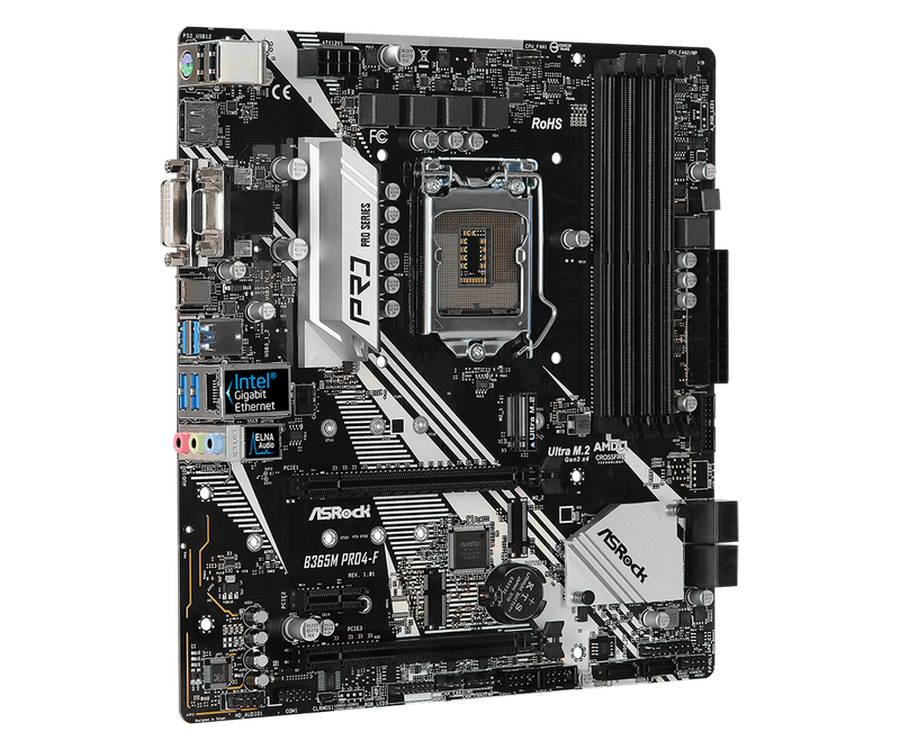

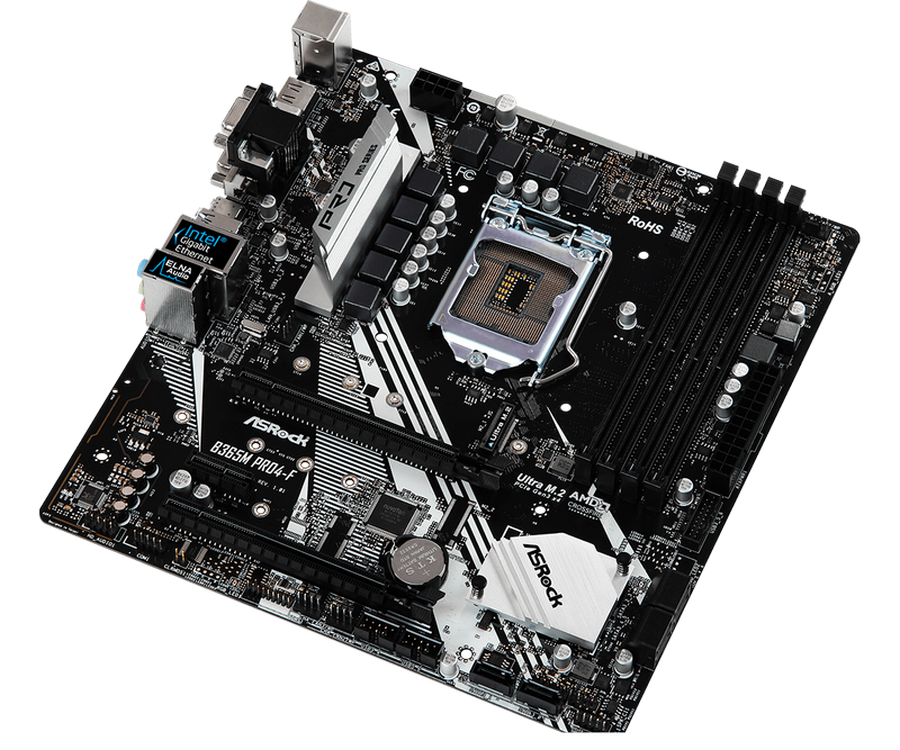

MB ASRock B365M PRO4-F mATX

№ 40571
// CPU Supports 9th and 8th Gen Intel® Core™ Processors Chipset - Intel® B365 Memory - Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory Graphics - Supports Intel® UHD Graphics - Three graphics output options: D-Sub, DVI-D and HDMI - Supports Triple Monitor - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz Audio - 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)* LAN - Gigabit LAN 10/100/1000 Mb/s - Giga PHY Intel® I219V Slots - 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3)) - 1 x PCI Express 3.0 x1 Slot (Flexible PCIe) - Supports AMD Quad CrossFireX™ and CrossFireX™ Storage - 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 17), NCQ, AHCI and Hot Plug - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)* USB - 1 x USB 3.1 Gen1 Type-C Port - 6 x USB 3.1 Gen1 Ports - 6 x USB 2.0 Ports https://www.asrock.com/MB/Intel/B365M%20Pro4-F/index.asp#Overview
Specificație produs
Suport slot M2 # 3 --
Suport slot M2 # 2 --
Suport slot M2 # 1 M2: SATA3 & PCIe Gen3 x4 (32 Gb/s)
Bluetooth --
Controler Wi-Fi --
Controler Ethernet #2 --
Controler Ethernet #1 Gigabit Ethernet (Intel I219V)
SPDIF port ieșire --
Suport slot M2 # 4 --
DisplayPort --
RAID RAID 0, RAID 1, RAID 10
Porturi USB 2.0 2x USB 2.0 (Support 4 USB Ports)
Conector Thunderbolt --
Porturi USB 3.x 1 x USB 3.2 Gen1 (Supports 2 USB 3.2 Gen1 ports)
Sloturi memorie 4x DIMM
Procesoare suportate Intel Core Gen 8th/9th & Celeron/Pentium (Coffe Lake)
Chipset Intel B365
Socket LGA1151
Factor de formă a plăcii de baza Micro-ATX
Tip Mainboard
Tip Memorie DDR4 SDRAM
Frecvență memorie 2133 MHz
HDMI 1x HDMI 1.4
Porturi USB 3.x 1 x USB 3.2 Gen1 (Supports 2 USB 3.2 Gen1 ports)
Porturi USB 2.0 2x USB 2.0 (Support 4 USB Ports)
USB Type-C USB 3.2
USB 3.x Type-A 3x USB 3.2
Capacitate max. Totală RAM 64GB
USB 2.0 Type-A 2x
RAID RAID 0, RAID 1, RAID 10
Conectori SATA 6x SATA 6Gb/s
Suport slot M2 # 1 M2: SATA3 & PCIe Gen3 x4 (32 Gb/s)
Controler Ethernet #1 Gigabit Ethernet (Intel I219V)
Porturi HD Audio Jacks: Line in / Front Speaker / Microphone
Chipset audio 7.1 Ch HD Audio, Realtek ALC892
DVI 1x DVI-I
D-Sub (VGA) 1x
Porturi PS/2 1x
