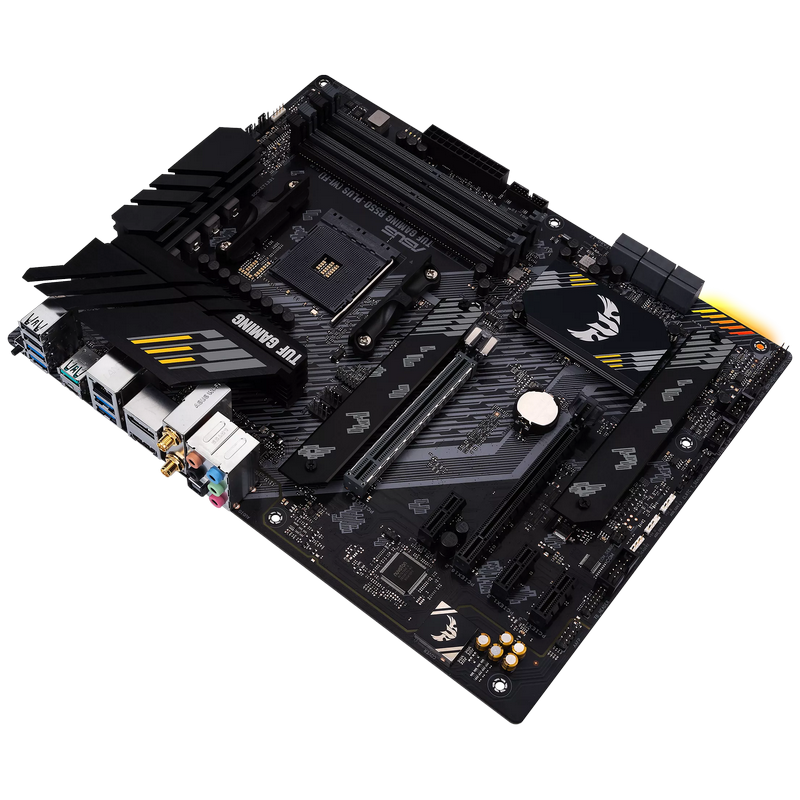

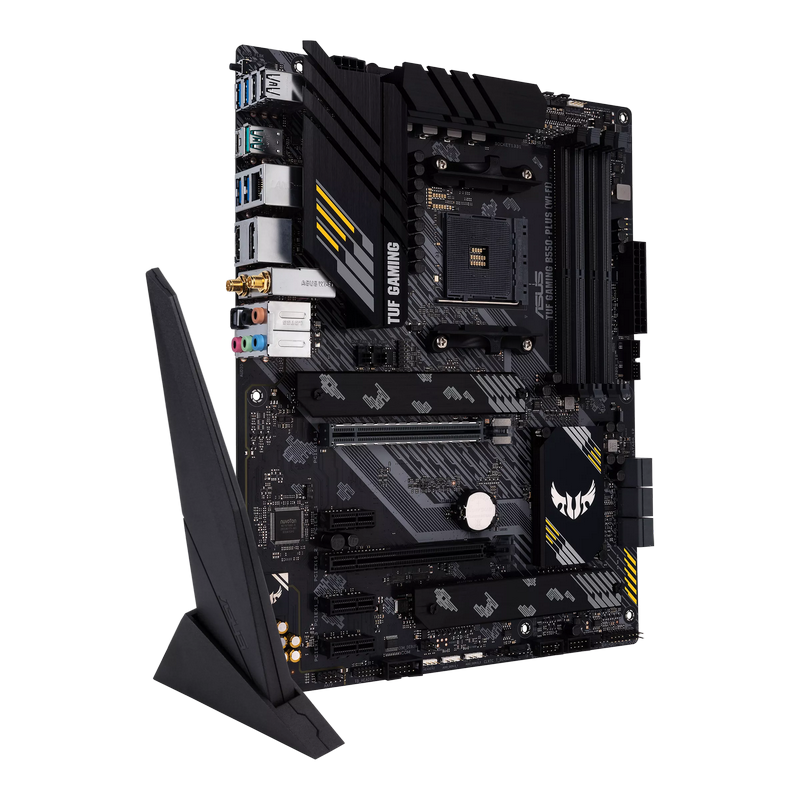

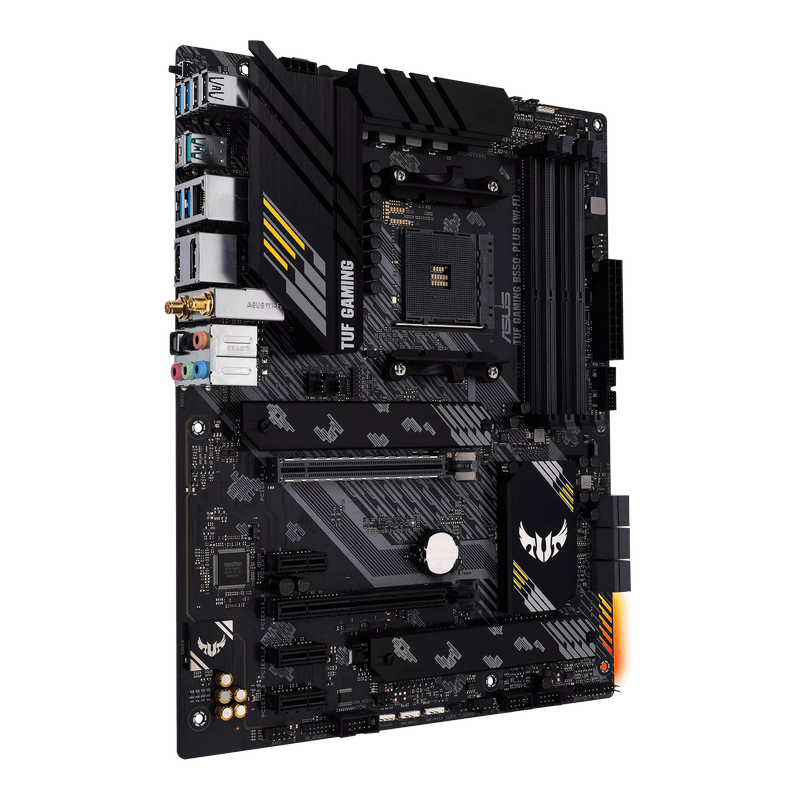

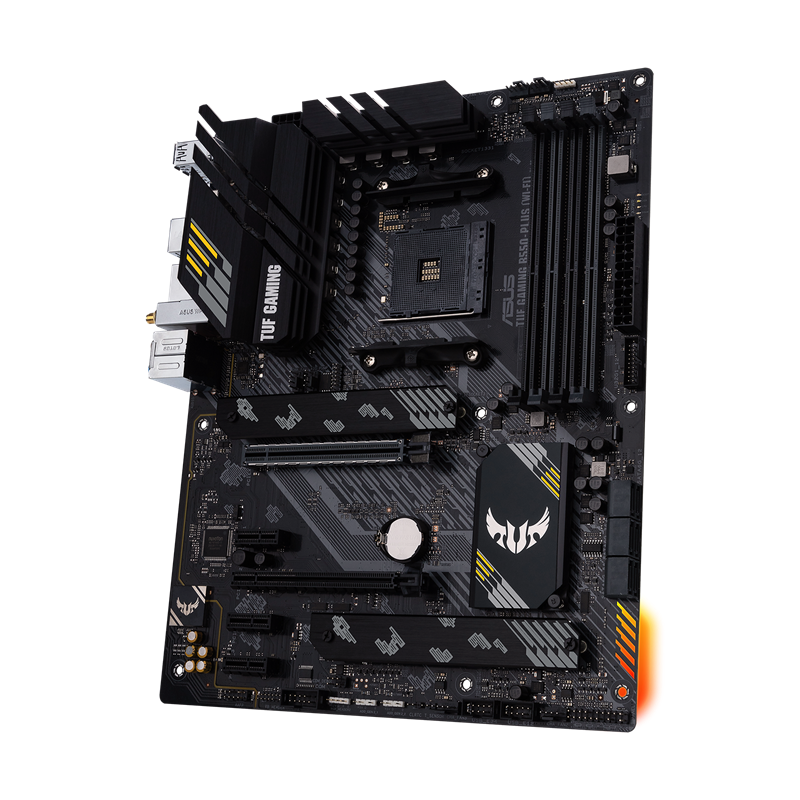

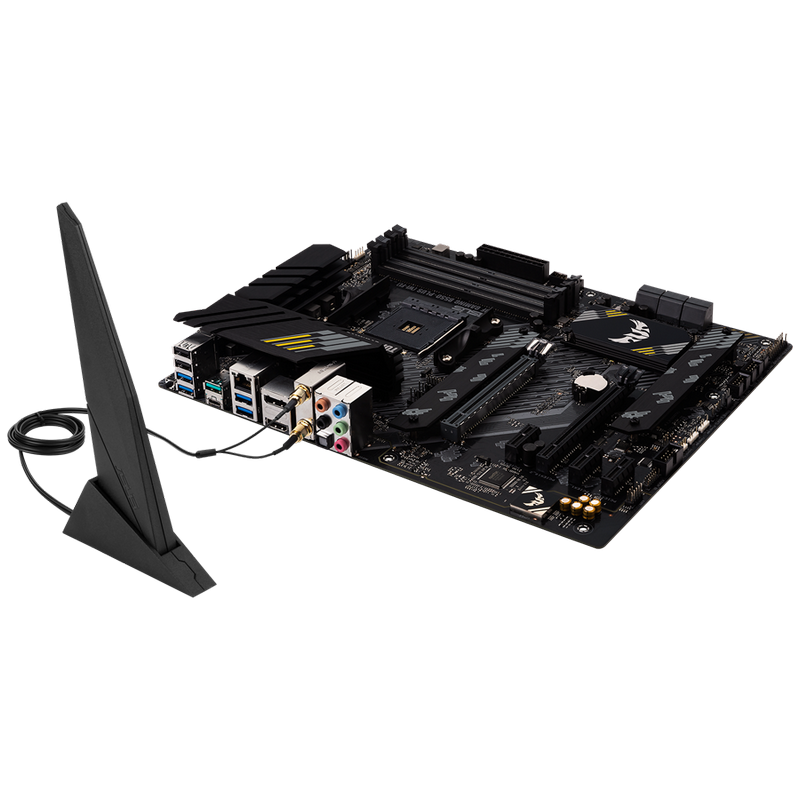

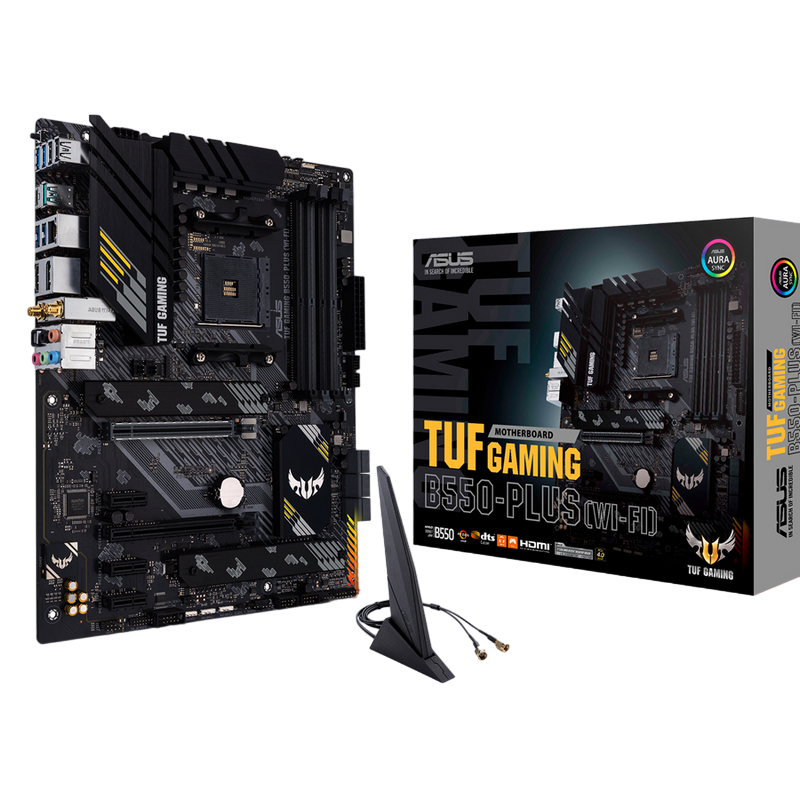

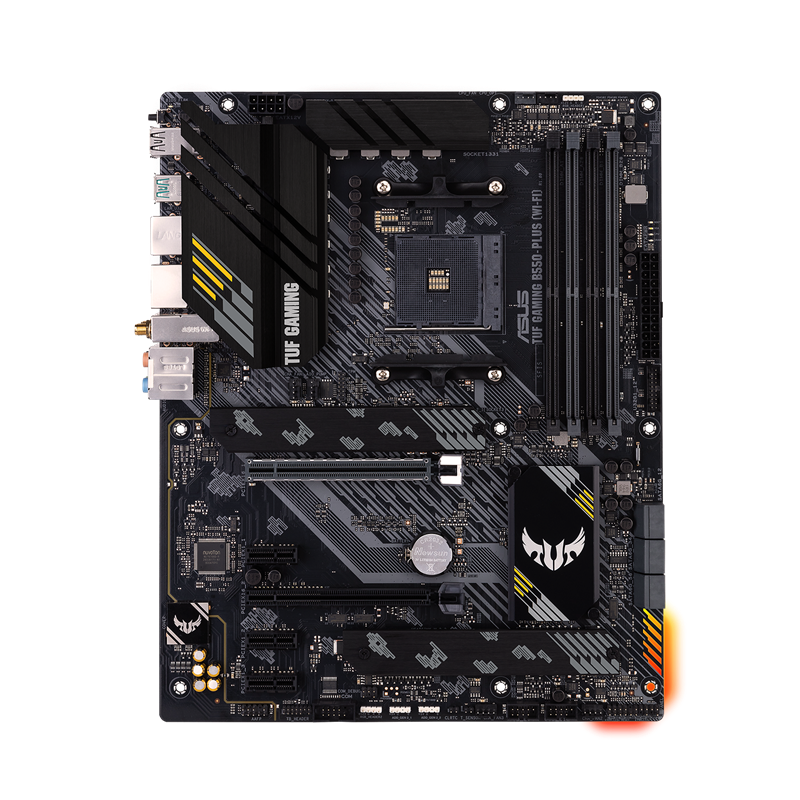

MB AM4 Asus TUF GAMING B550-PLUS (WI-FI) ATX

// CPU AMD AM4 Socket Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors Chipset AMD B550 Memory 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory * Dual Channel Memory Architecture Graphic 1 x DisplayPort 1.4 ** 1 x HDMI 2.1(4K@60HZ) Multi-GPU Support Supports AMD 2-Way CrossFireX Technology Expansion Slots 1 x PCIe 4.0 x16 (x16 mode) 1 x PCIe 3.0 x16 (x4 mode) 3 x PCIe 3.0 x1 *1 Storage 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 LAN Realtek RTL8125B 2.5Gb Ethernet Wireless Data Network Intel® Wi-Fi 6 AX200 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Supports up to 2.4Gbps max data rate Supports dual band frequency 2.4/5 GHz Audio Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC USB Ports Rear USB Port ( Total 8 ) 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®) 4 x USB 3.2 Gen 1 port(s)( x Type-A) 2 x USB 2.0 port(s)( x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s)(4 x Type-A) https://www.asus.com/Motherboards-Components/Motherboards/All-series/TUF-GAMING-B550-PLUS-WI-FI/
Specificație produs
Suport slot M2 # 4 --
Suport slot M2 # 3 --
Suport slot M2 # 2 M2: SATA3 or PCIe Gen3 x4 (32 Gb/s)
Suport slot M2 # 1 M2: PCIe Gen4 x4 (64 Gb/s) or Gen3x4 (32 Gb/s)
Controler Wi-Fi 802.11ac 2x2 Wi-Fi + BT 5.x
Controler Ethernet #2 --
Controler Ethernet #1 Gigabit Ethernet (Dragon RTL8125BG)
SPDIF port ieșire --
Conectori SATA 6x SATA 6Gb/s
Porturi HD Audio Jacks: Line in / Front Speaker / Microphone
DVI --
DisplayPort 1x DP 1.2
HDMI 1x HDMI 2.1
Capacitate max. Totală RAM 128GB
Frecvență memorie 2133 MHz
Tip Memorie DDR4 SDRAM
Sloturi memorie 4x DIMM
Procesoare suportate Ryzen series (3000/4000/5000)
Chipset audio 7.1 Ch HD Audio, Realtek AL1220
Chipset AMD B550
RAID RAID 0, RAID 1, RAID 10
USB 3.x Type-A 6x USB 3.2
USB 2.0 Type-A 2x
Porturi USB 3.x 1 x USB 3.2 Gen1 (Supports 2 USB 3.2 Gen1 ports)
Porturi USB 2.0 2x USB 2.0 (Support 4 USB Ports)
Conector Thunderbolt --
USB Type-C 1 x
Socket AM4
Tip Mainboard
Factor de formă a plăcii de baza ATX
