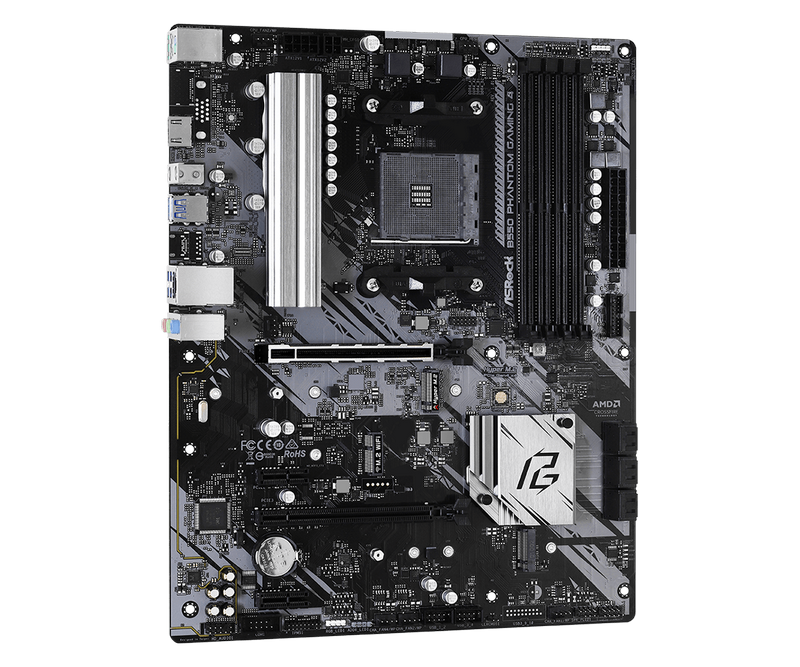

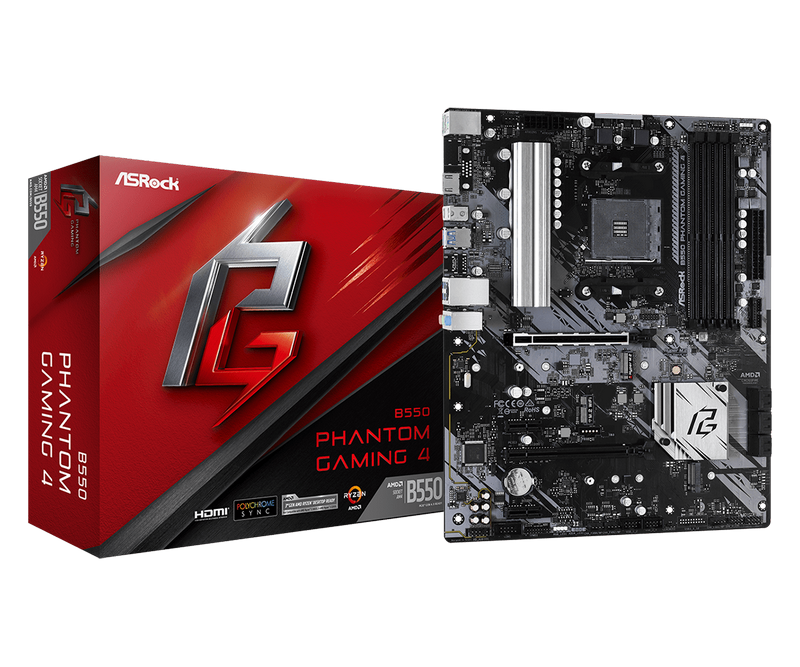

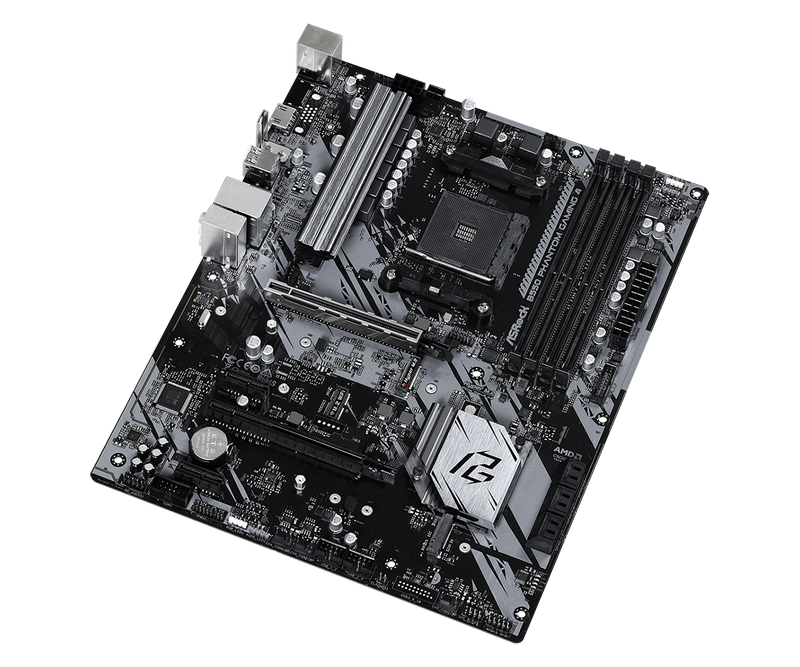

MB AM4 ASRock B550 PHANTOM GAMING 4 ATX

№ 40767
// CPU - AMD AM4 Socket - Supports 3rd Gen AMD AM4 Ryzen™ / future AMD Ryzen™ Processors* Chipset - AMD B550 Memory - Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - Supports DDR4 4733+ (OC) - Max. capacity of system memory: 128GB** Graphics - Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU* - Shared memory default 2GB. Max Shared memory supports up to 16GB.** - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz Audio - 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec) LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111H Slots - 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode)* - 2 x PCI Express 3.0 x1 Slots - Supports AMD Quad CrossFireX™ and CrossFireX™ - 1 x M.2 Socket (Key E) with the bundled WiFi-802.11ac module Storage - 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug* - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280/22110 M.2 PCI Express module up to Gen4x4 (64 Gb/s) or Gen3x4 (32 Gb/s)** - 1 x M.2 Socket (M2_3), supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)** USB - 8 x USB 3.2 Gen1 Ports - 4 x USB 2.0 Ports https://www.asrock.com/mb/AMD/B550%20Phantom%20Gaming%204/index.asp#Overview
Specificație produs
Porturi USB 2.0 2x USB 2.0 (Support 4 USB Ports)
RAID RAID 0, RAID 1, RAID 10
Suport slot M2 # 4 --
Suport slot M2 # 3 --
Suport slot M2 # 2 --
Suport slot M2 # 1 M2: PCIe Gen4 x4 (64 Gb/s) or Gen3x4 (32 Gb/s)
Controler Ethernet #2 --
Controler Ethernet #1 Gigabit Ethernet (Realtek RTL8111H)
Porturi USB 3.x 1 x USB 3.2 Gen1 (Supports 2 USB 3.2 Gen1 ports)
D-Sub (VGA) --
Porturi USB 3.x 1 x USB 3.2 Gen1 (Supports 2 USB 3.2 Gen1 ports)
Porturi USB 2.0 2x USB 2.0 (Support 4 USB Ports)
Sloturi memorie 4x DIMM
Procesoare suportate Ryzen series (3000/4000/5000)
Chipset AMD B550
Socket AM4
Factor de formă a plăcii de baza ATX
Tip Mainboard
Tip Memorie DDR4 SDRAM
Frecvență memorie 2133 MHz
Capacitate max. Totală RAM 128GB
HDMI 1x HDMI
Conector Thunderbolt --
USB Type-C --
USB 3.x Type-A 6x USB 3.2
USB 2.0 Type-A --
RAID RAID 0, RAID 1, RAID 10
Conectori SATA 4x SATA 6Gb/s
Suport slot M2 # 4 --
Suport slot M2 # 3 --
Suport slot M2 # 2 --
Suport slot M2 # 1 M2: SATA3 & PCIe Gen3 x2 (16 Gb/s)
Bluetooth 4.2
Controler Wi-Fi 802.11ac 1x1 Wi-Fi + BT 4.x
Controler Ethernet #2 --
Controler Ethernet #1 Gigabit Ethernet (Realtek RTL8111H)
SPDIF port ieșire --
Porturi HD Audio Jacks: Line in / Front Speaker / Microphone
Chipset audio 7.1 Ch HD Audio, Realtek AL1220
DVI --
DisplayPort --
