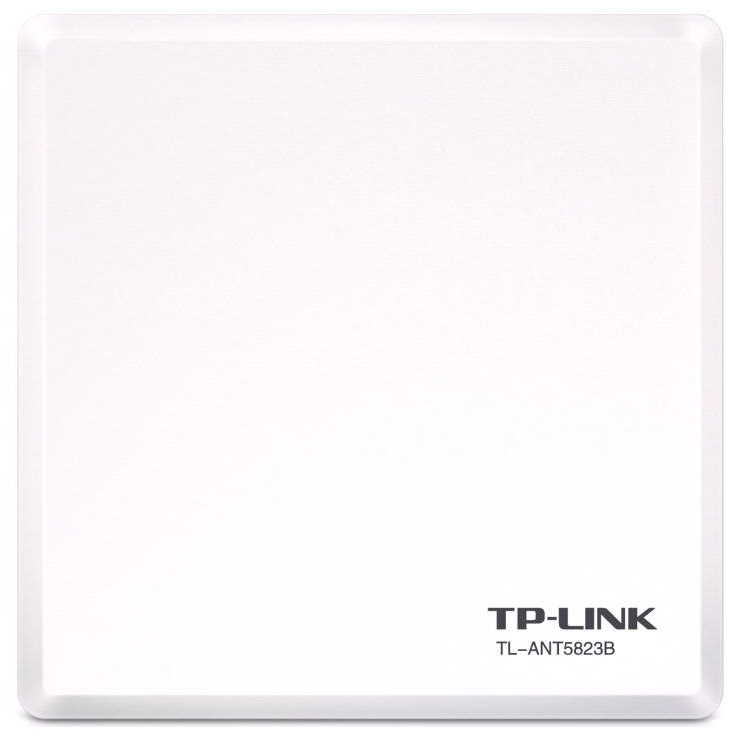

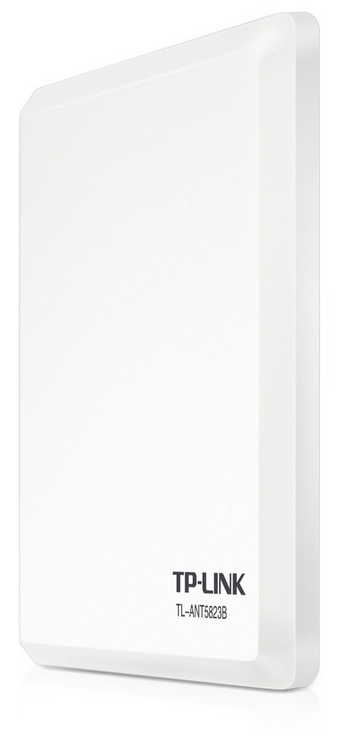

Wireless Antenna TP-LINK "TL-ANT5823B", 5GHz 23dBi Outdoor Panel Antenna, N-type connector
Dimension 320?320?20(mm) Frequency 5.15~5.85GHz Impedance 50 Ohms Gain 23dBi VSWR(MAX.) ?1.5 HPBW/H( °) 12 HPBW/V( °) 12 Polarization Vertical or Horizontal Connector Type N Female Mounting Wall Mount / Pole Mount Operating Temp. -40?~60?(-40?~140?) Storage Temp. -40?~60?(-40?~140?) F/B Ratio >28dB Maximum Input Power 100W Mounting Mast Diameter ?30~?50 mm Radome Material ABS Standards RoHS, WEEE Survival Wind Speed 241Km/hr Compliant with 802.11a/n, 5GHz wireless application 23dBi signal gain Direction operation N Type Female connector Provided mounting kits enable easy installation
